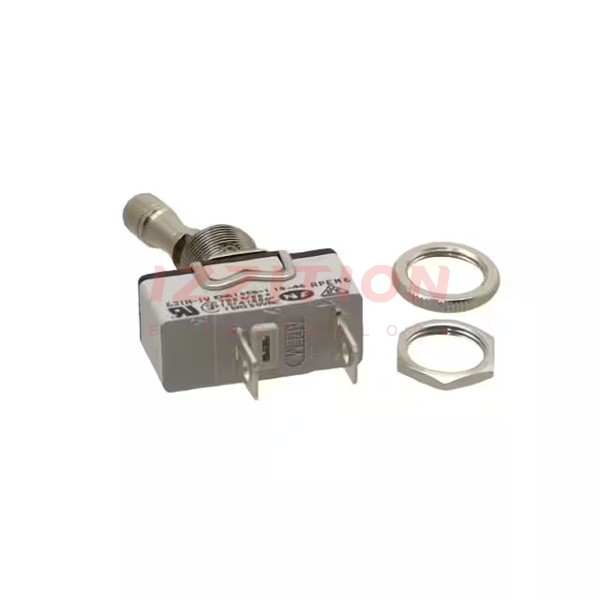

APEM Inc.-631H/21V - Toggle Switches Product Specifications and Latest Quotes

Mounting Type:	Panel Mount
Circuit:	SPST
Switch Function:	On-Off
Current Rating (Amps):	15A (AC)
Voltage Rating - AC:	250 V
Voltage Rating - DC:	-
Actuator Type:	Locking Lever
Actuator Length:	19.40mm
Illumination:	Non-Illuminated
Illumination Type, Color:	-
Illumination Voltage (Nominal):	-
Termination Style:	Quick Connect - 0.250" (6.3mm)
Panel Cutout Dimensions:	Circular - 12.20mm Dia
Bushing Thread:	15/32-32
Ingress Protection:	-
Features:	-
Operating Temperature:	-20°C ~ 55°C

APEM Inc. 631H/21V
