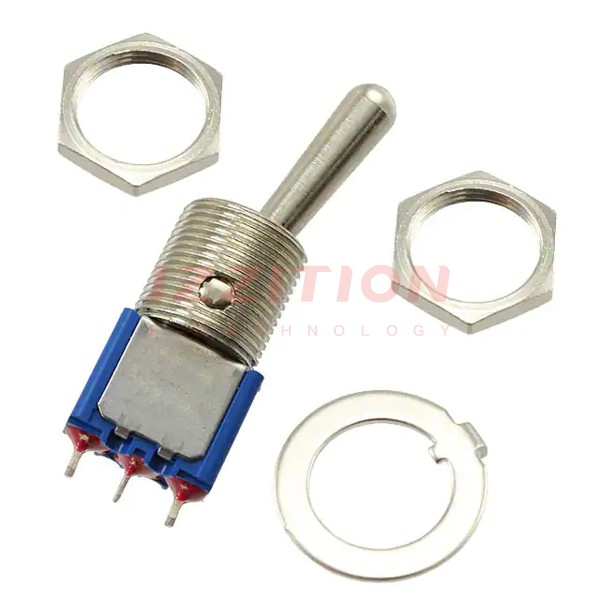

APEM Inc.-5636MAB - Toggle Switches Product Specifications and Latest Quotes

Mounting Type:	Panel Mount
Circuit:	SPDT
Switch Function:	On-On
Current Rating (Amps):	6A (AC), 4A (DC)
Voltage Rating - AC:	125 V
Voltage Rating - DC:	30 V
Actuator Type:	Standard Round
Actuator Length:	17.50mm
Illumination:	Non-Illuminated
Illumination Type, Color:	-
Illumination Voltage (Nominal):	-
Termination Style:	Solder Lug
Panel Cutout Dimensions:	Circular - 12.50mm Dia
Bushing Thread:	15/32-32
Ingress Protection:	-
Features:	Epoxy Sealed Terminals
Operating Temperature:	-40°C ~ 85°C

APEM Inc. 5636MAB
