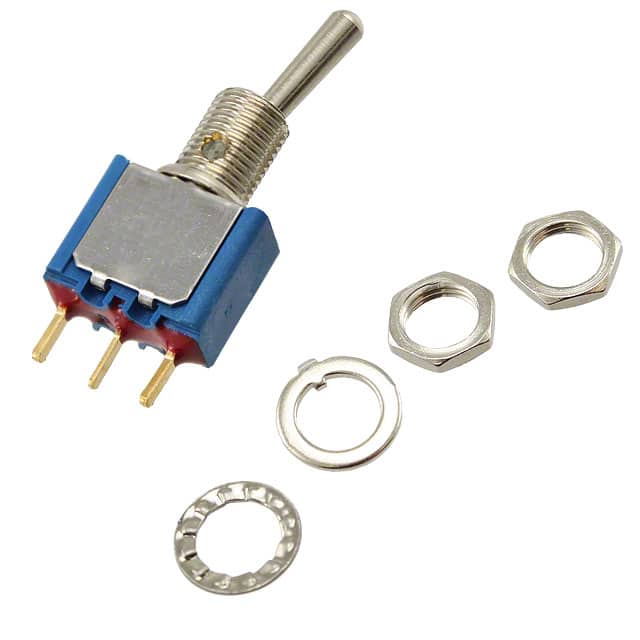

APEM Inc.-5237CDB - Toggle Switches Product Specifications and Latest Quotes

Mounting Type:	Panel Mount
Circuit:	SPDT
Switch Function:	Mom-Off-Mom
Current Rating (Amps):	0.4VA (AC/DC)
Voltage Rating - AC:	20 V
Voltage Rating - DC:	20 V
Actuator Type:	Standard Round
Actuator Length:	10.50mm
Illumination:	Non-Illuminated
Illumination Type, Color:	-
Illumination Voltage (Nominal):	-
Termination Style:	PC Pin
Panel Cutout Dimensions:	Circular - 6.50mm Dia
Bushing Thread:	1/4-40
Ingress Protection:	-
Features:	Epoxy Sealed Terminals
Operating Temperature:	-40°C ~ 85°C

APEM Inc. 5237CDB
