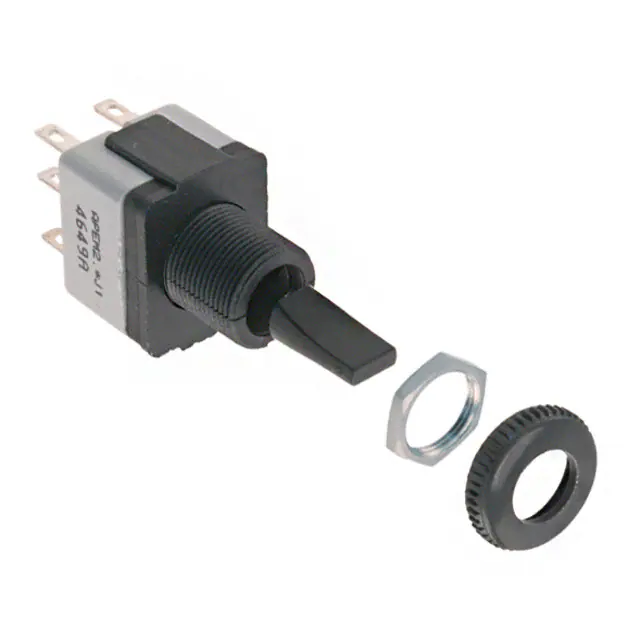

APEM Inc.-4649A22UU - Toggle Switches Product Specifications and Latest Quotes

Mounting Type:	Panel Mount
Circuit:	DPDT
Switch Function:	On-Off-On
Current Rating (Amps):	6A (AC)
Voltage Rating - AC:	125 V
Voltage Rating - DC:	-
Actuator Type:	Flatted
Actuator Length:	13.50mm
Illumination:	Non-Illuminated
Illumination Type, Color:	-
Illumination Voltage (Nominal):	-
Termination Style:	Solder, Quick Connect - 0.110" (2.8mm)
Panel Cutout Dimensions:	Circular - 12.20mm Dia
Bushing Thread:	M12 x 0.75
Ingress Protection:	-
Features:	-
Operating Temperature:	-20°C ~ 55°C

APEM Inc. 4649A22UU
