APEM Inc.-3646NF/2 - Toggle Switches Product Specifications and Latest Quotes

Mounting Type:	Panel Mount
Circuit:	DPDT
Switch Function:	On-On
Current Rating (Amps):	6A (AC), 12A (DC)
Voltage Rating - AC:	125 V
Voltage Rating - DC:	28 V
Actuator Type:	Standard Round
Actuator Length:	17.50mm
Illumination:	Non-Illuminated
Illumination Type, Color:	-
Illumination Voltage (Nominal):	-
Termination Style:	Quick Connect - 0.250" (6.3mm)
Panel Cutout Dimensions:	Circular - 12.20mm Dia
Bushing Thread:	M12 x 0.75
Ingress Protection:	-
Features:	Sealed
Operating Temperature:	-40°C ~ 85°C

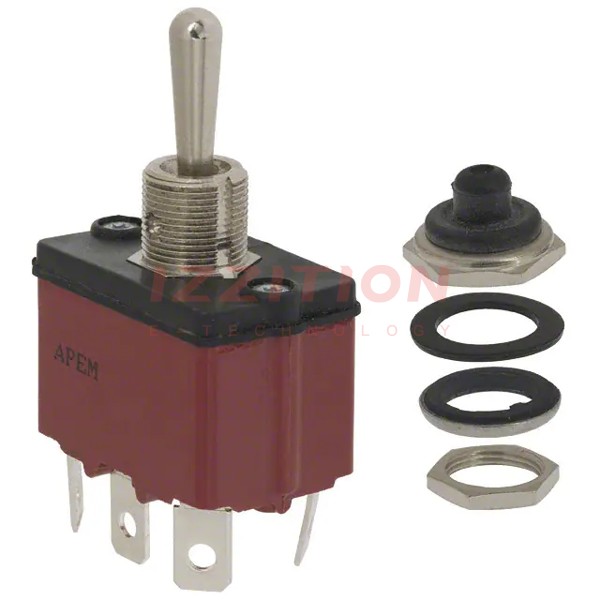

APEM Inc. 3646NF/2
