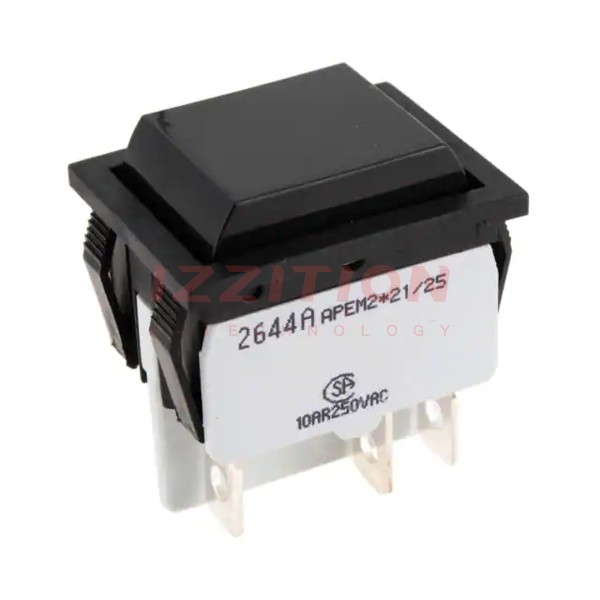

APEM Inc.-2644LH/2A212000L0 - Rocker Switches Product Specifications and Latest Quotes

Mounting Type:	Panel Mount, Snap-In
Circuit:	SP3T
Switch Function:	On-On-On
Current Rating (Amps):	8A (DC)
Voltage Rating - AC:	-
Voltage Rating - DC:	12 V
Actuator Type:	Flat
Color - Actuator/Cap:	Black
Actuator Marking:	No Marking
Illumination Type, Color:	-
Illumination Voltage (Nominal):	-
Termination Style:	Solder, Quick Connect - 0.250" (6.3mm)
Ingress Protection:	-
Features:	Jumper needed to achieve triple throw
Panel Cutout Dimensions:	Rectangular - 30.00mm x 22.00mm
Operating Temperature:	-20°C ~ 85°C

APEM Inc. 2644LH/2A212000L0
