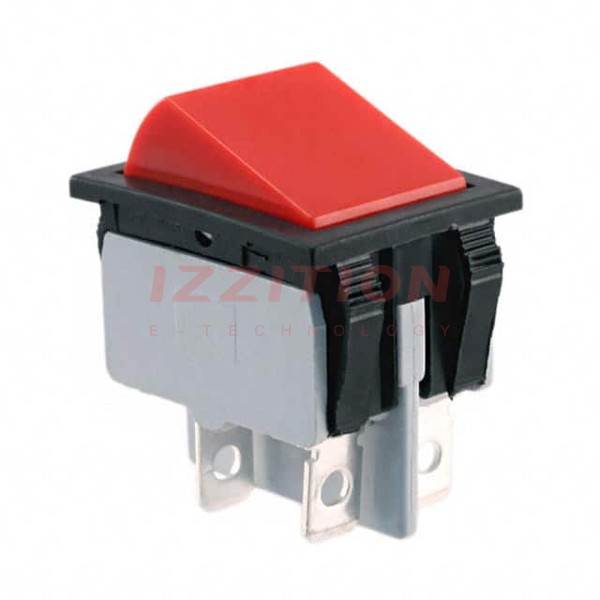

APEM Inc.-2641LH/2A216000L0 - Rocker Switches Product Specifications and Latest Quotes

Mounting Type:	Panel Mount, Snap-In
Circuit:	DPST
Switch Function:	On-Off
Current Rating (Amps):	16A (AC), 15A (DC)
Voltage Rating - AC:	125 V
Voltage Rating - DC:	12 V
Actuator Type:	Flat
Color - Actuator/Cap:	Red
Actuator Marking:	No Marking
Illumination Type, Color:	-
Illumination Voltage (Nominal):	-
Termination Style:	Solder, Quick Connect - 0.250" (6.3mm)
Ingress Protection:	-
Features:	-
Panel Cutout Dimensions:	Rectangular - 30.00mm x 22.00mm
Operating Temperature:	-20°C ~ 85°C

APEM Inc. 2641LH/2A216000L0
