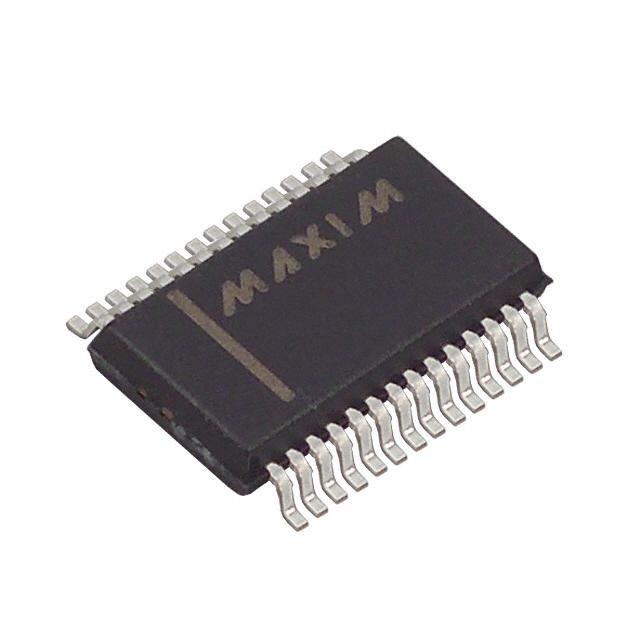

| Part Number | ZLF645E0H2864G | ZLF645S0H2864G | ZLF645E0S2864G | ZLF645E0H4864G | ZLF645E0P2864G | ZLF645E0H2064G |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete |
| Core Processor | Z8 LXMC | - | Z8 LXMC | Z8 LXMC | Z8 LXMC | Z8 LXMC |
| Core Size | 8-Bit | - | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 8MHz | - | 8MHz | 8MHz | 8MHz | 8MHz |
| Connectivity | UART/USART | - | UART/USART | UART/USART | UART/USART | UART/USART |
| Peripherals | Brown-out Detect/Reset, HLVD, POR, WDT | - | Brown-out Detect/Reset, HLVD, POR, WDT | Brown-out Detect/Reset, HLVD, POR, WDT | Brown-out Detect/Reset, HLVD, POR, WDT | Brown-out Detect/Reset, HLVD, POR, WDT |
| Number of I/O | 24 | - | 24 | 40 | 24 | 16 |
| Program Memory Size | 64KB (64K x 8) | - | 64KB (64K x 8) | 64KB (64K x 8) | 64KB (64K x 8) | 64KB (64K x 8) |
| Program Memory Type | Flash | - | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - |
| RAM Size | 1K x 8 | - | 1K x 8 | 1K x 8 | 1K x 8 | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.9V ~ 3.6V | - | 1.9V ~ 3.6V | 1.9V ~ 3.6V | 1.9V ~ 3.6V | 1.9V ~ 3.6V |
| Data Converters | - | - | - | - | - | - |
| Oscillator Type | - | - | - | - | - | - |
| Operating Temperature | 0°C ~ 70°C (TA) | - | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount | - | Surface Mount | Surface Mount | Through Hole | Surface Mount |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) | - | 28-SOIC (0.295", 7.50mm Width) | 48-BSSOP (0.295", 7.50mm Width) | 28-DIP (0.600", 15.24mm) | 20-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 28-SSOP | - | 28-SOIC | 48-SSOP | 28-PDIP | 20-SSOP |
