Please send RFQ , we will respond immediately.
| Part Number | SW7511FQ | SW7510FQ | SW7511AQ | SW7511BQ | SW7511EQ |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Switch Circuit | SPST - NO | SPST - NO | SPST - NO | SPST - NO | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 |
| Number of Circuits | 4 | 4 | 4 | 4 | 4 |
| On-State Resistance (Max) | 100Ohm | 100Ohm | 75Ohm | 100Ohm | 75Ohm |
| Channel-to-Channel Matching (ΔRon) | 15Ohm | 15Ohm | 11.25Ohm | 15Ohm | 11.25Ohm |
| Voltage - Supply, Single (V+) | 36V | 36V | 36V | 36V | 36V |
| Voltage - Supply, Dual (V±) | 36V | 36V | 36V | 36V | 36V |
| Switch Time (Ton, Toff) (Max) | 550ns, 450ns | 550ns, 450ns | 450ns, 300ns | 550ns, 450ns | 450ns, 300ns |
| -3db Bandwidth | - | - | - | - | - |
| Charge Injection | - | - | - | - | - |
| Channel Capacitance (CS(off), CD(off)) | 6.5pF, 6.5pF | 6.5pF, 6.5pF | 6.5pF, 6.5pF | 6.5pF, 6.5pF | 6.5pF, 6.5pF |
| Current - Leakage (IS(off)) (Max) | 3nA | 3nA | 1nA | 3nA | 1nA |
| Crosstalk | 60dB @ 100kHz | 60dB @ 100kHz | 60dB @ 100kHz | 60dB @ 100kHz | 60dB @ 100kHz |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -55°C ~ 125°C | -55°C ~ 125°C | -25°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |

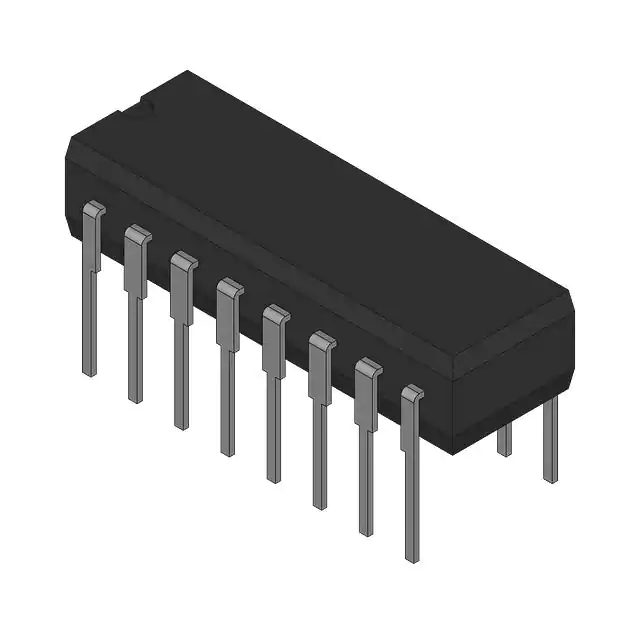

| Package / Case | 16-CDIP | 16-CDIP | 16-CDIP | 16-CDIP | 16-CDIP |
| Supplier Device Package | 16-CDIP | 16-CDIP | 16-CDIP | 16-CDIP | 16-CDIP |
