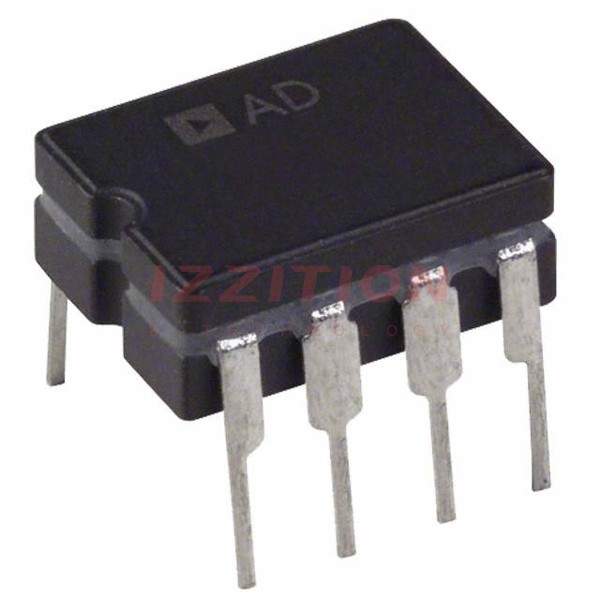

| Part Number | REF02Z | REF02AZ | REF02EZ | REF02HZ |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active |
| Reference Type | Series | Series | Series | Series |
| Output Type | Fixed | Fixed | Fixed | Fixed |
| Voltage - Output (Min/Fixed) | 5V | 5V | 5V | 5V |
| Voltage - Output (Max) | - | - | - | - |
| Current - Output | 10 mA | 10 mA | 10 mA | 10 mA |
| Tolerance | ±0.5% | ±0.3% | ±0.3% | ±0.5% |
| Temperature Coefficient | 25ppm/°C | 8.5ppm/°C | 8.5ppm/°C | 25ppm/°C |
| Noise - 0.1Hz to 10Hz | 15µVp-p | 15µVp-p | 15µVp-p | 15µVp-p |
| Noise - 10Hz to 10kHz | - | - | - | - |
| Voltage - Input | 8V ~ 36V | 8V ~ 36V | 8V ~ 36V | 8V ~ 36V |
| Current - Supply | 1.4mA | 1.4mA | 1.4mA | 1.4mA |
| Current - Cathode | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 8-CDIP (0.300", 7.62mm) | 8-CDIP (0.300", 7.62mm) | 8-CDIP (0.300", 7.62mm) | 8-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 8-CERDIP | 8-CERDIP | 8-CERDIP | 8-CERDIP |
