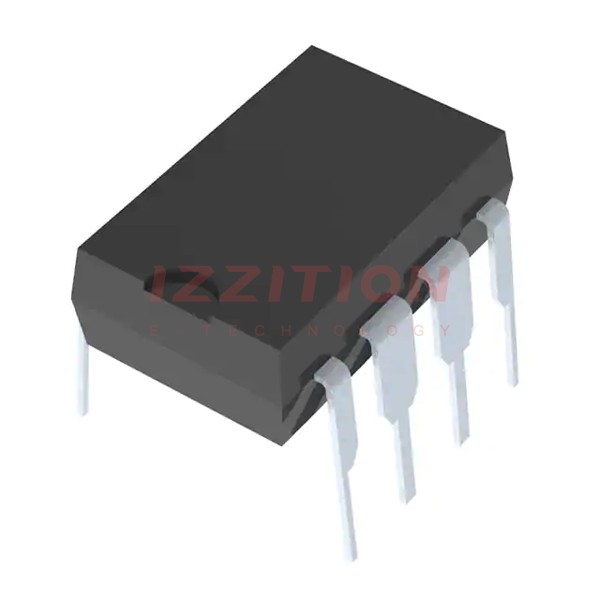

| Part Number | REF01HPZ | REF01HZ | REF02HPZ | REF01HSZ | REF01CPZ | REF01HP | REF01HP+ |
|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Obsolete | Active | Obsolete | Active | Obsolete | Last Time Buy |
| Reference Type | Series | Series | Series | - | Series | - | Series |
| Output Type | Fixed | Fixed | Fixed | - | Fixed | - | Fixed |
| Voltage - Output (Min/Fixed) | 10V | 10V | 5V | - | 10V | - | 10V |
| Voltage - Output (Max) | - | - | - | - | - | - | - |
| Current - Output | 10 mA | 10 mA | 10 mA | - | 8 mA | - | 21 mA |
| Tolerance | ±0.5% | ±0.5% | ±0.5% | - | ±1% | - | ±0.5% |
| Temperature Coefficient | 25ppm/°C | 25ppm/°C | 25ppm/°C | - | 65ppm/°C | - | 25ppm/°C |
| Noise - 0.1Hz to 10Hz | 30µVp-p | 30µVp-p | 15µVp-p | - | 30µVp-p | - | 20µVp-p |
| Noise - 10Hz to 10kHz | - | - | - | - | - | - | - |
| Voltage - Input | 13V ~ 33V | 12V ~ 40V | 8V ~ 36V | - | 13V ~ 33V | - | 13V ~ 33V |
| Current - Supply | 1.4mA | 1.4mA | 1.4mA | - | 1.6mA | - | 1.4mA |
| Current - Cathode | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | - | -40°C ~ 85°C (TA) | - | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Surface Mount | Through Hole | Through Hole | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) | 8-CDIP (0.300", 7.62mm) | 8-DIP (0.300", 7.62mm) | 8-SOIC (0.154", 3.90mm Width) | 8-DIP (0.300", 7.62mm) | 8-DIP (0.300", 7.62mm) | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP | 8-CERDIP | 8-PDIP | 8-SOIC | 8-PDIP | 8-PDIP | 8-PDIP |
