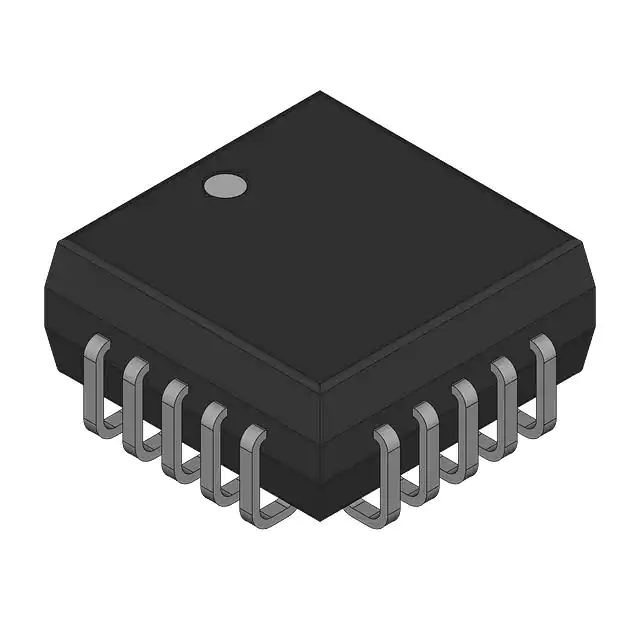

| Part Number | PM7543FPC | PM7548FPC | PM7543HPC | PM7543FPZ | PM7545FPC | PM7543FP |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Obsolete | Obsolete |
| Number of Bits | 12 | 12 | 12 | 12 | - | - |
| Number of D/A Converters | 1 | 1 | 1 | 1 | - | - |
| Settling Time | 380ns | 1µs | 380ns | 380µs | - | - |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | - | - |
| Differential Output | Yes | No | Yes | Yes | - | - |
| Data Interface | Serial | - | Serial | Serial | - | - |
| Reference Type | External | External | External | External | - | - |
| Voltage - Supply, Analog | 4.75V ~ 5.25V | 4.75V ~ 5.25V, 11.4V ~ 15.75V | 4.75V ~ 5.25V | 5V | - | - |
| Voltage - Supply, Digital | 5.25V | 4.75V ~ 5.25V, 11.4V ~ 15.75V | 5.25V | 5V | - | - |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) | ±0.5LSB (Max) | - | ±1 (Max), ±1 (Max) | - | - |
| Architecture | Multiplying DAC, R-2R | - | Multiplying DAC, R-2R | R-2R | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | - | -40°C ~ 85°C | - | - |
| Package / Case | 20-LCC (J-Lead) | 20-LCC (J-Lead) | 20-LCC (J-Lead) | 16-DIP (0.300", 7.62mm) | 20-LCC (J-Lead) | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 20-PLCC (9x9) | 20-PLCC (9x9) | 20-PLCC (9x9) | 16-PDIP | 20-PLCC (9x9) | 16-PDIP |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Through Hole | Surface Mount | Through Hole |
