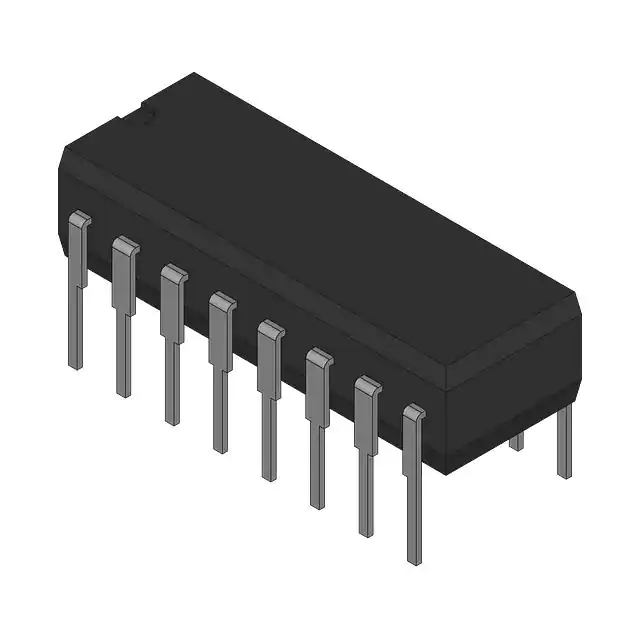

| Part Number | PM7542FQ | PM7543FQ | PM7542FS | PM7542AQ | PM7542BQ | PM7542EQ | PM7542FP |
|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Number of Bits | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Number of D/A Converters | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Settling Time | 1µs | 380ns | 1µs | 1µs | 1µs | 1µs | 1µs |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered |
| Differential Output | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Data Interface | - | Serial | - | - | - | - | - |
| Reference Type | External | External | External | External | External | External | External |
| Voltage - Supply, Analog | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 4.75V ~ 5.25V | 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) | ±0.5 (Max), ±0.5 (Max) | ±1 (Max), ±1 (Max) | ±0.5 (Max), ±0.5 (Max) | ±1 (Max), ±1 (Max) |
| Architecture | Multiplying DAC | Multiplying DAC, R-2R | Multiplying DAC | Multiplying DAC | Multiplying DAC | Multiplying DAC | Multiplying DAC |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -55°C ~ 125°C | -55°C ~ 125°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 16-SOIC (0.154", 3.90mm Width) | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CERDIP | 16-CERDIP | 16-SOIC | 16-CERDIP | 16-CERDIP | 16-CERDIP | 16-PDIP |
| Mounting Type | Through Hole | Through Hole | Surface Mount | Through Hole | Through Hole | Through Hole | Through Hole |
