Please send RFQ , we will respond immediately.

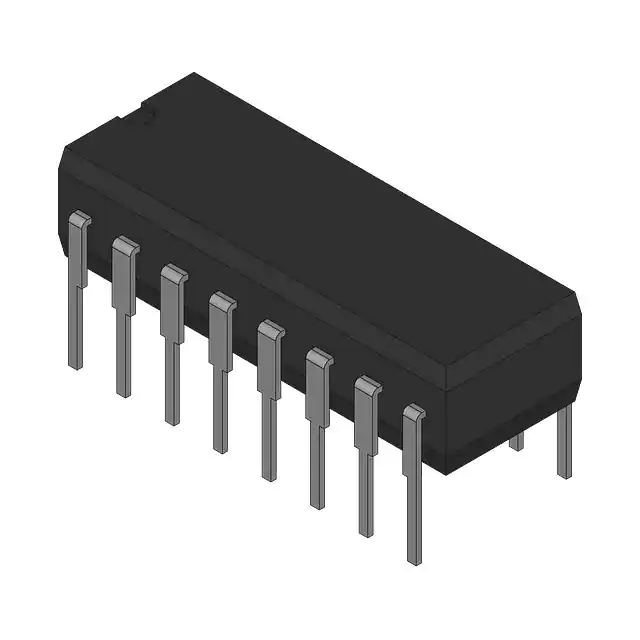

| Part Number | PM7542FP | PM7542GP | PM7542FS | PM7542HP | PM7542FQ | PM7543FP | PM7545FP |
|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Obsolete | Obsolete |
| Number of Bits | 12 | 12 | 12 | 12 | 12 | - | - |
| Number of D/A Converters | 1 | 1 | 1 | 1 | 1 | - | - |
| Settling Time | 1µs | 1µs | 1µs | 1µs | 1µs | - | - |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | - | - |
| Differential Output | Yes | Yes | Yes | Yes | Yes | - | - |
| Data Interface | - | - | - | - | - | - | - |
| Reference Type | External | External | External | External | External | - | - |
| Voltage - Supply, Analog | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | - | - |
| Voltage - Supply, Digital | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | - | - |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) | ±0.5 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) | - | ±1 (Max), ±1 (Max) | - | - |
| Architecture | Multiplying DAC | Multiplying DAC | Multiplying DAC | Multiplying DAC | Multiplying DAC | - | - |
| Operating Temperature | -40°C ~ 85°C | 0°C ~ 70°C | -40°C ~ 85°C | - | -40°C ~ 85°C | - | - |
| Package / Case | 16-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) | 16-SOIC (0.154", 3.90mm Width) | 16-DIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP | 16-PDIP | 16-SOIC | 16-PDIP | 16-CERDIP | 16-PDIP | 20-PDIP |
| Mounting Type | Through Hole | Through Hole | Surface Mount | Through Hole | Through Hole | Through Hole | Through Hole |
