OP270FZ
  • Share:

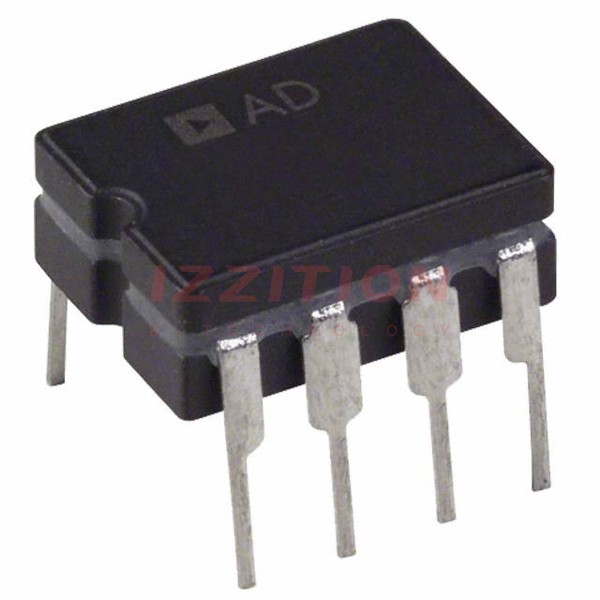

Analog Devices Inc. OP270FZ

Manufacturer No:
OP270FZ
Manufacturer:
Analog Devices Inc.
Package:
Bulk
Datasheet:
OP270FZ Datasheet
ECAD Model:
-
Description:
IC OPAMP GP 2 CIRCUIT 8CERDIP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Amplifier Type:General Purpose
Number of Circuits:2
Output Type:-
Slew Rate:2.4V/µs
Gain Bandwidth Product:5 MHz
-3db Bandwidth:-
Current - Input Bias:10 nA
Voltage - Input Offset:20 µV
Current - Supply:4mA
Current - Output / Channel:-
Voltage - Supply Span (Min):9 V
Voltage - Supply Span (Max):36 V
Operating Temperature:-40°C ~ 85°C
Mounting Type:Through Hole
Package / Case:8-CDIP (0.300", 7.62mm)
Supplier Device Package:8-CERDIP
0 Remaining View Similar

In Stock

-
310

Please send RFQ , we will respond immediately.

Similar Products

Part Number OP270FZ OP290FZ   OP220FZ   OP260FZ   OP270EZ
Manufacturer Analog Devices Inc. Analog Devices Inc. Analog Devices Inc. Analog Devices Inc. Analog Devices Inc.
Product Status Active Active Active Active Active
Amplifier Type General Purpose General Purpose Power Current Feedback General Purpose
Number of Circuits 2 2 2 2 2
Output Type - - - - -
Slew Rate 2.4V/µs 0.012V/µs 0.05V/µs 550V/µs -
Gain Bandwidth Product 5 MHz - 200 kHz - 5 MHz
-3db Bandwidth - - - 90 MHz -
Current - Input Bias 10 nA 4 nA 13 nA 4 µA 5 nA
Voltage - Input Offset 20 µV 75 µV 250 µV 2 mV 10 µV
Current - Supply 4mA 25µA 140µA (x2 Channels) 9mA 4mA
Current - Output / Channel - - 100 µA - -
Voltage - Supply Span (Min) 9 V 1.6 V 5 V 18 V 9 V
Voltage - Supply Span (Max) 36 V 36 V 30 V 36 V 36 V
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -25°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C
Mounting Type Through Hole Through Hole Through Hole Through Hole Through Hole
Package / Case 8-CDIP (0.300", 7.62mm) 8-CDIP (0.300", 7.62mm) 8-CDIP (0.300", 7.62mm) 8-CDIP (0.300", 7.62mm) 8-CDIP (0.300", 7.62mm)
Supplier Device Package 8-CERDIP 8-CERDIP 8-CERDIP 8-CERDIP 8-CERDIP
