Please send RFQ , we will respond immediately.

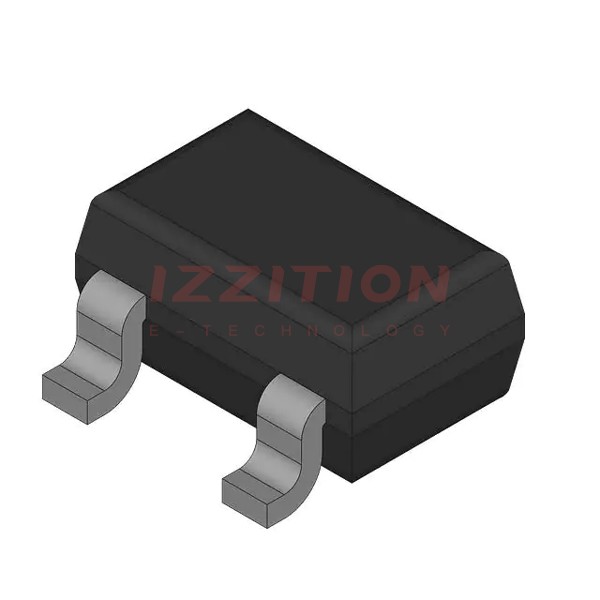

| Part Number | MXD1815XR26+ | MXD1816XR26+ | MXD1817XR26+ | MXD1815XR26+T | MXD1815UR26+ | MXD1815XR22+ | MXD1815XR23+ | MXD1815XR26 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Active |
| Type | - | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | - |
| Number of Voltages Monitored | - | 1 | 1 | 1 | 1 | 1 | 1 | - |
| Voltage - Threshold | - | 2.55V | 2.55V | 2.55V | 2.55V | 2.18V | 2.31V | - |
| Output | - | Open Drain or Open Collector | Push-Pull, Totem Pole | Push-Pull, Totem Pole | Push-Pull, Totem Pole | Push-Pull, Totem Pole | Push-Pull, Totem Pole | - |
| Reset | - | Active Low | Active High | Active Low | Active Low | Active Low | Active Low | - |
| Reset Timeout | - | 100ms Minimum | 100ms Minimum | 100ms Minimum | 100ms Minimum | 100ms Minimum | 100ms Minimum | - |
| Operating Temperature | - | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | - |
| Mounting Type | - | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | - |
| Package / Case | - | SC-70, SOT-323 | SC-70, SOT-323 | SC-70, SOT-323 | TO-236-3, SC-59, SOT-23-3 | SC-70, SOT-323 | SC-70, SOT-323 | - |
| Supplier Device Package | - | SC-70-3 | SC-70-3 | SC-70-3 | SOT-23-3 | SC-70-3 | SC-70-3 | - |
