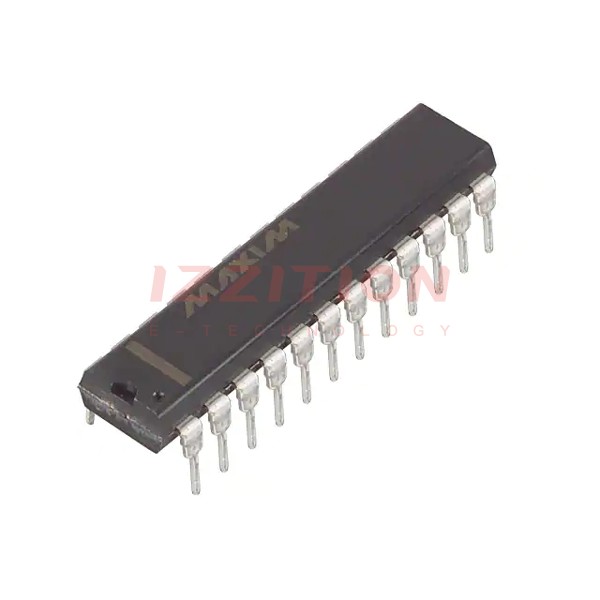

| Part Number | MX7847JN+ | MX7847JR+ | MX7547JN+ | MX7837JN+ | MX7845JN+ | MX7847AN+ | MX7847BN+ |
|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active | Obsolete | Active | Obsolete |
| Number of Bits | 12 | 12 | 12 | 12 | 12 | 12 | - |
| Number of D/A Converters | 2 | 2 | 2 | 2 | 1 | 2 | - |
| Settling Time | 4µs (Typ) | 4µs (Typ) | 1.5µs | 4µs (Typ) | 5µs | 4µs (Typ) | - |
| Output Type | Voltage - Buffered | Voltage - Buffered | Current - Unbuffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | - |
| Differential Output | No | No | No | No | No | No | - |
| Data Interface | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel | - |
| Reference Type | External | External | External | External | External | External | - |
| Voltage - Supply, Analog | ±11.4V ~ 16.5V | ±11.4V ~ 16.5V | 10.8V ~ 16.5V | ±11.4V ~ 16.5V | ±14.25V ~ 15.75V | ±11.4V ~ 16.5V | - |
| Voltage - Supply, Digital | - | - | 10.8V ~ 16.5V | - | - | - | - |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) | - |
| Architecture | R-2R | R-2R | R-2R | R-2R | R-2R | R-2R | - |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | -40°C ~ 85°C | - |
| Package / Case | 24-DIP (0.300", 7.62mm) | 24-SOIC (0.295", 7.50mm Width) | 24-DIP (0.300", 7.62mm) | 24-DIP (0.300", 7.62mm) | 24-DIP (0.300", 7.62mm) | 24-DIP (0.300", 7.62mm) | - |
| Supplier Device Package | 24-PDIP | 24-SOIC | 24-PDIP | 24-PDIP | 24-PDIP | 24-PDIP | - |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Through Hole | Through Hole | Through Hole | - |
