MX7549JEWP+
  • Share:

Analog Devices Inc./Maxim Integrated MX7549JEWP+

Manufacturer No:
MX7549JEWP+
Manufacturer:
Analog Devices Inc./Maxim Integrated
Package:
Tube
Datasheet:
MX7549JEWP+ Datasheet
ECAD Model:
-
Description:
IC DAC 12BIT A-OUT 20WLP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Bits:12
Number of D/A Converters:2
Settling Time:1.5µs
Output Type:Current - Unbuffered
Differential Output:No
Data Interface:-
Reference Type:External
Voltage - Supply, Analog:5V ~ 15V
Voltage - Supply, Digital:5V ~ 15V
INL/DNL (LSB):±1 (Max), ±0.5 (Max)
Architecture:R-2R
Operating Temperature:0°C ~ 70°C

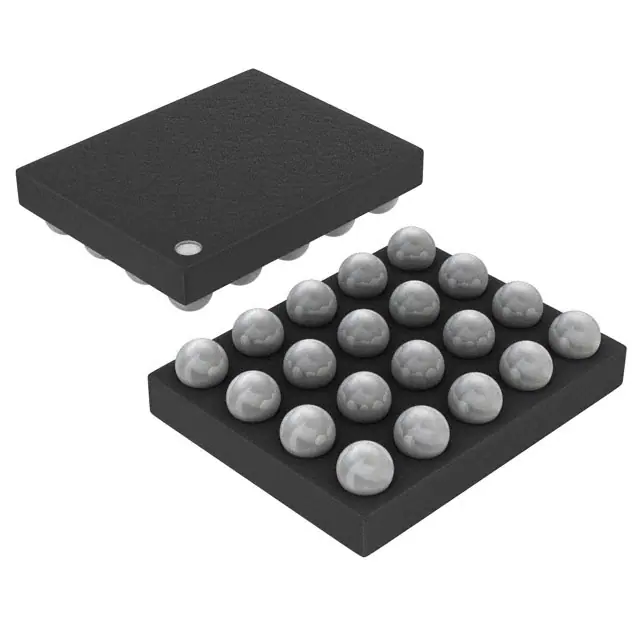

Package / Case:20-WFBGA, WLBGA
Supplier Device Package:20-WLP
Mounting Type:Surface Mount
0 Remaining View Similar

In Stock

-
50

Please send RFQ , we will respond immediately.

Similar Products

Part Number MX7549JEWP+ MX7549KEWP+   MX7549JEWP+T   MX7548JEWP+   MX7549JCWP+
Manufacturer Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated
Product Status Obsolete Obsolete Obsolete Active Obsolete
Number of Bits 12 12 12 12 12
Number of D/A Converters 2 2 2 1 2
Settling Time 1.5µs 1.5µs 1.5µs 1µs 1.5µs
Output Type Current - Unbuffered Current - Unbuffered Current - Unbuffered Current - Unbuffered Current - Unbuffered
Differential Output No No No No No
Data Interface - - - Parallel -
Reference Type External External External External External
Voltage - Supply, Analog 5V ~ 15V 5V ~ 15V 5V ~ 15V 5V, 11.4V ~ 15.75V 5V ~ 15V
Voltage - Supply, Digital 5V ~ 15V 5V ~ 15V 5V ~ 15V 5V, 11.4V ~ 15.75V 5V ~ 15V
INL/DNL (LSB) ±1 (Max), ±0.5 (Max) ±1 (Max), ±0.5 (Max) ±1 (Max), ±0.5 (Max) ±1 (Max), ±1 (Max) ±1 (Max), ±0.5 (Max)
Architecture R-2R R-2R R-2R R-2R R-2R
Operating Temperature 0°C ~ 70°C 0°C ~ 70°C 0°C ~ 70°C -40°C ~ 85°C 0°C ~ 70°C
Package / Case 20-WFBGA, WLBGA 20-WFBGA, WLBGA 20-WFBGA, WLBGA 20-SOIC (0.295", 7.50mm Width) 20-SOIC (0.295", 7.50mm Width)
Supplier Device Package 20-WLP 20-WLP 20-WLP 20-SOIC 20-SOIC
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
