Please send RFQ , we will respond immediately.

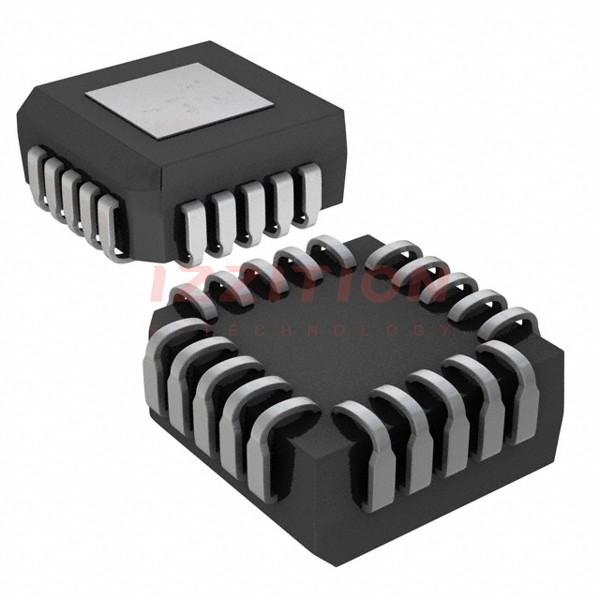

| Part Number | MX7548JP+ | MX7548JP+T | MX7549JP+ | MX7545JP+ | MX7547JP+ | MX7548JN+ |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Obsolete | Obsolete | Active | Active |
| Number of Bits | 12 | 12 | 12 | - | 12 | 12 |
| Number of D/A Converters | 1 | 1 | 2 | - | 2 | 1 |
| Settling Time | 1µs | 1µs | 1.5µs | - | 1.5µs | 1µs |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | - | Current - Unbuffered | Current - Unbuffered |
| Differential Output | No | No | No | - | No | No |
| Data Interface | Parallel | Parallel | - | - | Parallel | Parallel |
| Reference Type | External | External | External | - | External | External |
| Voltage - Supply, Analog | 5V, 11.4V ~ 15.75V | 5V, 11.4V ~ 15.75V | 5V ~ 15V | - | 10.8V ~ 16.5V | 5V, 11.4V ~ 15.75V |
| Voltage - Supply, Digital | 5V, 11.4V ~ 15.75V | 5V, 11.4V ~ 15.75V | 5V ~ 15V | - | 10.8V ~ 16.5V | 5V, 11.4V ~ 15.75V |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) | ±1 (Max), ±0.5 (Max) | - | ±1 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) |
| Architecture | R-2R | R-2R | R-2R | - | R-2R | R-2R |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | - | 0°C ~ 70°C | 0°C ~ 70°C |
| Package / Case | 20-LCC (J-Lead) | 20-LCC (J-Lead) | 20-LCC (J-Lead) | 20-LCC (J-Lead) | 28-LCC (J-Lead) | 20-DIP (0.300", 7.62mm) |
| Supplier Device Package | 20-PLCC (9x9) | 20-PLCC (9x9) | 20-PLCC (9x9) | 20-PLCC (9x9) | 28-PLCC (11.51x11.51) | 20-PDIP |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Through Hole |
