Please send RFQ , we will respond immediately.

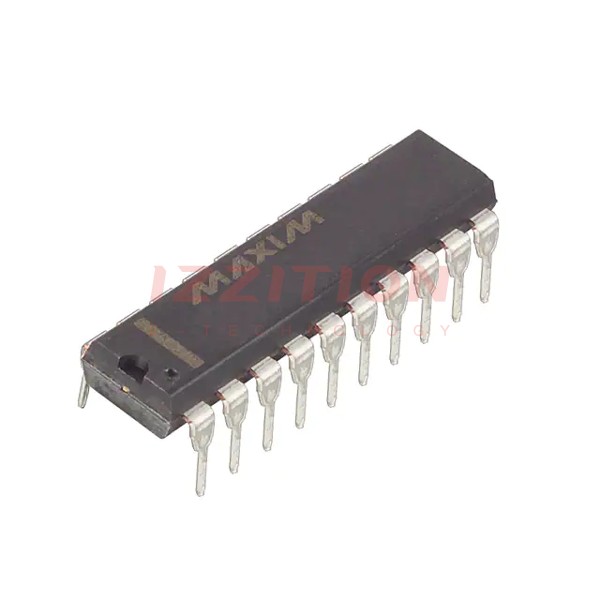

| Part Number | MX7548JN+ | MX7548JP+ | MX7548KN+ | MX7549JN+ | MX7542JN+ | MX7543JN+ | MX7545JN+ | MX7547JN+ |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Obsolete | Active | Active | Active | Active |
| Number of Bits | 12 | 12 | 12 | - | 12 | 12 | 12 | 12 |
| Number of D/A Converters | 1 | 1 | 1 | - | 1 | 1 | 1 | 2 |
| Settling Time | 1µs | 1µs | 1µs | - | 2µs | 2µs | 2µs | 1.5µs |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | - | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered |
| Differential Output | No | No | No | - | Yes | Yes | No | No |
| Data Interface | Parallel | Parallel | Parallel | - | Parallel | Serial | Parallel | Parallel |
| Reference Type | External | External | External | - | External | External | External | External |
| Voltage - Supply, Analog | 5V, 11.4V ~ 15.75V | 5V, 11.4V ~ 15.75V | 5V, 11.4V ~ 15.75V | - | 5V | 5V | 5V ~ 15V | 10.8V ~ 16.5V |
| Voltage - Supply, Digital | 5V, 11.4V ~ 15.75V | 5V, 11.4V ~ 15.75V | 5V, 11.4V ~ 15.75V | - | 5V | 5V | 5V ~ 15V | 10.8V ~ 16.5V |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) | ±0.5 (Max), ±0.5 (Max) | - | ±1 (Max), ±2 (Max) | ±1 (Max), ±2 (Max) | ±2 (Max), ±4 (Max) | ±1 (Max), ±1 (Max) |
| Architecture | R-2R | R-2R | R-2R | - | R-2R | R-2R | R-2R | R-2R |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | - | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Package / Case | 20-DIP (0.300", 7.62mm) | 20-LCC (J-Lead) | 20-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) | 24-DIP (0.300", 7.62mm) |
| Supplier Device Package | 20-PDIP | 20-PLCC (9x9) | 20-PDIP | 20-PDIP | 16-PDIP | 16-PDIP | 20-PDIP | 24-PDIP |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
