MX7547JEWG+T
  • Share:

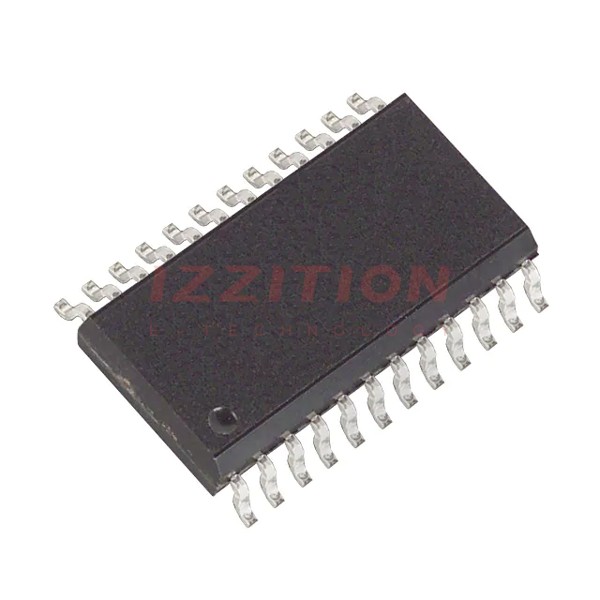

Analog Devices Inc./Maxim Integrated MX7547JEWG+T

Manufacturer No:
MX7547JEWG+T
Manufacturer:
Analog Devices Inc./Maxim Integrated
Package:
Tape & Reel (TR)
Datasheet:
MX7547JEWG+T Datasheet
ECAD Model:
-
Description:
IC DAC 12BIT A-OUT 24SOIC
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Bits:12
Number of D/A Converters:2
Settling Time:1.5µs
Output Type:Current - Unbuffered
Differential Output:No
Data Interface:Parallel
Reference Type:External
Voltage - Supply, Analog:10.8V ~ 16.5V
Voltage - Supply, Digital:10.8V ~ 16.5V
INL/DNL (LSB):±1 (Max), ±1 (Max)
Architecture:R-2R
Operating Temperature:-40°C ~ 85°C
Package / Case:24-SOIC (0.295", 7.50mm Width)
Supplier Device Package:24-SOIC
Mounting Type:Surface Mount
0 Remaining View Similar

In Stock

$22.90
27

Please send RFQ , we will respond immediately.

Similar Products

Part Number MX7547JEWG+T MX7547KEWG+T   MX7547JCWG+T   MX7547JEWG+
Manufacturer Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated
Product Status Active Obsolete Active Active
Number of Bits 12 12 12 12
Number of D/A Converters 2 2 2 2
Settling Time 1.5µs 1.5µs 1.5µs 1.5µs
Output Type Current - Unbuffered Current - Unbuffered Current - Unbuffered Current - Unbuffered
Differential Output No No No No
Data Interface Parallel Parallel Parallel Parallel
Reference Type External External External External
Voltage - Supply, Analog 10.8V ~ 16.5V 10.8V ~ 16.5V 10.8V ~ 16.5V 10.8V ~ 16.5V
Voltage - Supply, Digital 10.8V ~ 16.5V 10.8V ~ 16.5V 10.8V ~ 16.5V 10.8V ~ 16.5V
INL/DNL (LSB) ±1 (Max), ±1 (Max) ±0.5 (Max), ±1 (Max) ±1 (Max), ±1 (Max) ±1 (Max), ±1 (Max)
Architecture R-2R R-2R R-2R R-2R
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Package / Case 24-SOIC (0.295", 7.50mm Width) 24-SOIC (0.295", 7.50mm Width) 24-SOIC (0.295", 7.50mm Width) 24-SOIC (0.295", 7.50mm Width)
Supplier Device Package 24-SOIC 24-SOIC 24-SOIC 24-SOIC
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
