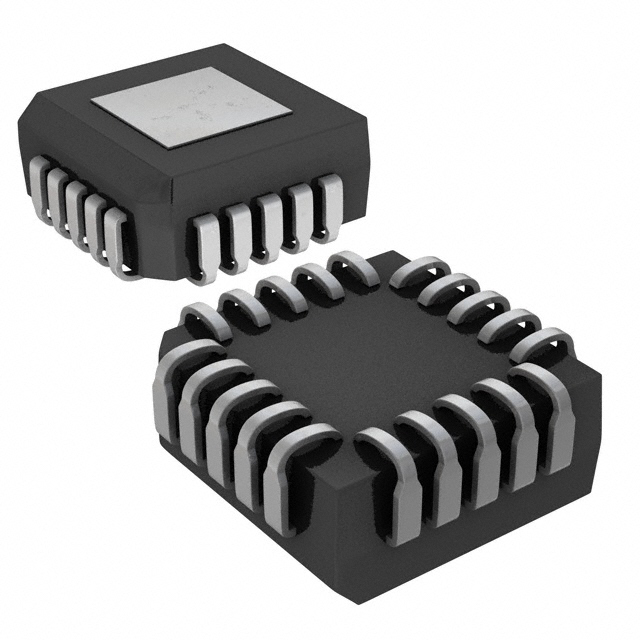

| Part Number | MX7545KP+ | MX7545LP+ | MX7549KP+ | MX7547KP+ | MX7543KP+ | MX7545AKP+ | MX7545JP+ | MX7545KN+ |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Active | Obsolete | Obsolete | Active |
| Number of Bits | - | - | 12 | - | 12 | 12 | - | 12 |
| Number of D/A Converters | - | - | 2 | - | 1 | 1 | - | 1 |
| Settling Time | - | - | 1.5µs | - | 2µs | 1µs | - | 2µs |
| Output Type | - | - | Current - Unbuffered | - | Current - Unbuffered | Current - Unbuffered | - | Current - Unbuffered |
| Differential Output | - | - | No | - | Yes | No | - | No |
| Data Interface | - | - | - | - | Serial | Parallel | - | Parallel |
| Reference Type | - | - | External | - | External | External | - | External |
| Voltage - Supply, Analog | - | - | 5V ~ 15V | - | 5V | 5V ~ 15V | - | 5V ~ 15V |
| Voltage - Supply, Digital | - | - | 5V ~ 15V | - | 5V | 5V ~ 15V | - | 5V ~ 15V |
| INL/DNL (LSB) | - | - | ±1 (Max), ±0.5 (Max) | - | ±0.5 (Max), ±1 (Max) | ±0.5 (Max), ±1 (Max) | - | ±1 (Max), ±1 (Max) |
| Architecture | - | - | R-2R | - | R-2R | R-2R | - | R-2R |
| Operating Temperature | - | - | 0°C ~ 70°C | - | 0°C ~ 70°C | 0°C ~ 70°C | - | 0°C ~ 70°C |
| Package / Case | - | 20-LCC (J-Lead) | 20-LCC (J-Lead) | - | 20-LCC (J-Lead) | 20-LCC (J-Lead) | 20-LCC (J-Lead) | 20-DIP (0.300", 7.62mm) |
| Supplier Device Package | - | 20-PLCC (9x9) | 20-PLCC (9x9) | - | 20-PLCC (9x9) | 20-PLCC (9x9) | 20-PLCC (9x9) | 20-PDIP |
| Mounting Type | - | Surface Mount | Surface Mount | - | Surface Mount | Surface Mount | Surface Mount | Through Hole |
