Please send RFQ , we will respond immediately.

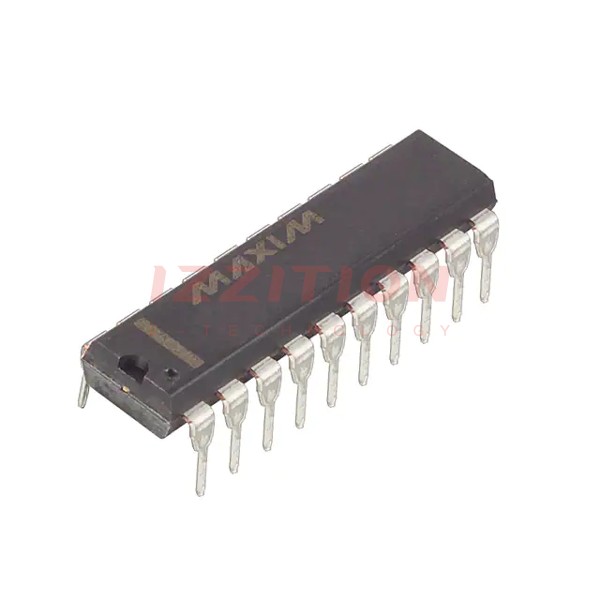

| Part Number | MX7545JN+ | MX7548JN+ | MX7547JN+ | MX7545KN+ | MX7545LN+ | MX7545JP+ | MX7549JN+ | MX7845JN+ | MX7541JN+ | MX7542JN+ | MX7543JN+ | MX7545JN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active | Obsolete | Obsolete | Obsolete | Obsolete | Active | Active | Active | Active |
| Number of Bits | 12 | 12 | 12 | 12 | 12 | - | - | 12 | 12 | 12 | 12 | - |
| Number of D/A Converters | 1 | 1 | 2 | 1 | 1 | - | - | 1 | 1 | 1 | 1 | - |
| Settling Time | 2µs | 1µs | 1.5µs | 2µs | 2µs | - | - | 5µs | 1µs | 2µs | 2µs | - |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | - | - | Voltage - Buffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | - |
| Differential Output | No | No | No | No | No | - | - | No | Yes | Yes | Yes | - |
| Data Interface | Parallel | Parallel | Parallel | Parallel | Parallel | - | - | Parallel | Parallel | Parallel | Serial | - |
| Reference Type | External | External | External | External | External | - | - | External | External | External | External | - |
| Voltage - Supply, Analog | 5V ~ 15V | 5V, 11.4V ~ 15.75V | 10.8V ~ 16.5V | 5V ~ 15V | 5V ~ 15V | - | - | ±14.25V ~ 15.75V | 5V ~ 16V | 5V | 5V | - |
| Voltage - Supply, Digital | 5V ~ 15V | 5V, 11.4V ~ 15.75V | 10.8V ~ 16.5V | 5V ~ 15V | 5V ~ 15V | - | - | - | 5V ~ 16V | 5V | 5V | - |
| INL/DNL (LSB) | ±2 (Max), ±4 (Max) | ±1 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) | ±0.5 (Max), ±1 (Max) | - | - | ±1 (Max), ±1 (Max) | ±1 (Max), - | ±1 (Max), ±2 (Max) | ±1 (Max), ±2 (Max) | - |
| Architecture | R-2R | R-2R | R-2R | R-2R | R-2R | - | - | R-2R | R-2R | R-2R | R-2R | - |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | - | - | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | - |
| Package / Case | 20-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) | 24-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) | 20-LCC (J-Lead) | 20-DIP (0.300", 7.62mm) | 24-DIP (0.300", 7.62mm) | 18-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) | - |
| Supplier Device Package | 20-PDIP | 20-PDIP | 24-PDIP | 20-PDIP | 20-PDIP | 20-PLCC (9x9) | 20-PDIP | 24-PDIP | 18-PDIP | 16-PDIP | 16-PDIP | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Surface Mount | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | - |
