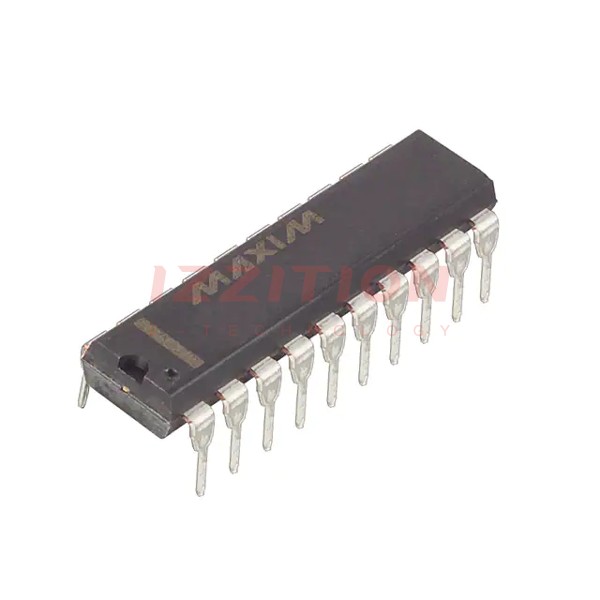

Analog Devices Inc./Maxim Integrated MX7545AKN+

Manufacturer No:
MX7545AKN+
Manufacturer:
Analog Devices Inc./Maxim Integrated
Package:
Tube
Datasheet:
MX7545AKN+ Datasheet
ECAD Model:
-
Description:
IC DAC 12BIT A-OUT 20DIP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Bits:12
Number of D/A Converters:1
Settling Time:1µs
Output Type:Current - Unbuffered
Differential Output:No
Data Interface:Parallel
Reference Type:External
Voltage - Supply, Analog:5V ~ 15V
Voltage - Supply, Digital:5V ~ 15V
INL/DNL (LSB):±0.5 (Max), ±1 (Max)
Architecture:R-2R
Operating Temperature:0°C ~ 70°C
Package / Case:20-DIP (0.300", 7.62mm)
Supplier Device Package:20-PDIP
Mounting Type:Through Hole
0 Remaining View Similar

In Stock

$17.58
54

Please send RFQ , we will respond immediately.

Similar Products

Part Number MX7545AKN+ MX7545ALN+   MX7545KN+   MX7545AKP+   MX7541AKN+   MX7545AKN
Manufacturer Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated
Product Status Active Active Active Obsolete Active Active
Number of Bits 12 12 12 12 12 -
Number of D/A Converters 1 1 1 1 1 -
Settling Time 1µs 1µs 2µs 1µs 600ns (Typ) -
Output Type Current - Unbuffered Current - Unbuffered Current - Unbuffered Current - Unbuffered Current - Unbuffered -
Differential Output No No No No Yes -
Data Interface Parallel Parallel Parallel Parallel Parallel -
Reference Type External External External External External -
Voltage - Supply, Analog 5V ~ 15V 5V ~ 15V 5V ~ 15V 5V ~ 15V 5V ~ 16V -
Voltage - Supply, Digital 5V ~ 15V 5V ~ 15V 5V ~ 15V 5V ~ 15V 5V ~ 16V -
INL/DNL (LSB) ±0.5 (Max), ±1 (Max) ±0.5 (Max), ±1 (Max) ±1 (Max), ±1 (Max) ±0.5 (Max), ±1 (Max) ±0.5 (Max), ±0.5 (Max) -
Architecture R-2R R-2R R-2R R-2R R-2R -
Operating Temperature 0°C ~ 70°C 0°C ~ 70°C 0°C ~ 70°C 0°C ~ 70°C 0°C ~ 70°C -
Package / Case 20-DIP (0.300", 7.62mm) 20-DIP (0.300", 7.62mm) 20-DIP (0.300", 7.62mm) 20-LCC (J-Lead) 18-DIP (0.300", 7.62mm) -
Supplier Device Package 20-PDIP 20-PDIP 20-PDIP 20-PLCC (9x9) 18-PDIP -
Mounting Type Through Hole Through Hole Through Hole Surface Mount Through Hole -
