| Part Number | MX7541JN+ | MX7543JN+ | MX7542JN+ | MX7545JN+ | MX7547JN+ | MX7541KN+ | MX7541AJN+ |
|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Number of Bits | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Number of D/A Converters | 1 | 1 | 1 | 1 | 2 | 1 | 1 |
| Settling Time | 1µs | 2µs | 2µs | 2µs | 1.5µs | 1µs | 600ns (Typ) |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered |
| Differential Output | Yes | Yes | Yes | No | No | Yes | Yes |
| Data Interface | Parallel | Serial | Parallel | Parallel | Parallel | Parallel | Parallel |
| Reference Type | External | External | External | External | External | External | External |
| Voltage - Supply, Analog | 5V ~ 16V | 5V | 5V | 5V ~ 15V | 10.8V ~ 16.5V | 5V ~ 16V | 5V ~ 16V |
| Voltage - Supply, Digital | 5V ~ 16V | 5V | 5V | 5V ~ 15V | 10.8V ~ 16.5V | 5V ~ 16V | 5V ~ 16V |
| INL/DNL (LSB) | ±1 (Max), - | ±1 (Max), ±2 (Max) | ±1 (Max), ±2 (Max) | ±2 (Max), ±4 (Max) | ±1 (Max), ±1 (Max) | ±1 (Max), - | ±1 (Max), ±1 (Max) |
| Architecture | R-2R | R-2R | R-2R | R-2R | R-2R | R-2R | R-2R |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |

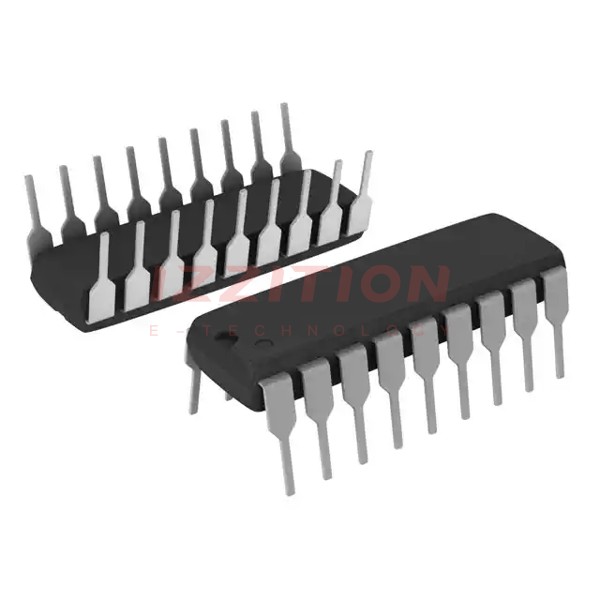

| Package / Case | 18-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) | 24-DIP (0.300", 7.62mm) | 18-DIP (0.300", 7.62mm) | 18-DIP (0.300", 7.62mm) |
| Supplier Device Package | 18-PDIP | 16-PDIP | 16-PDIP | 20-PDIP | 24-PDIP | 18-PDIP | 18-PDIP |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
