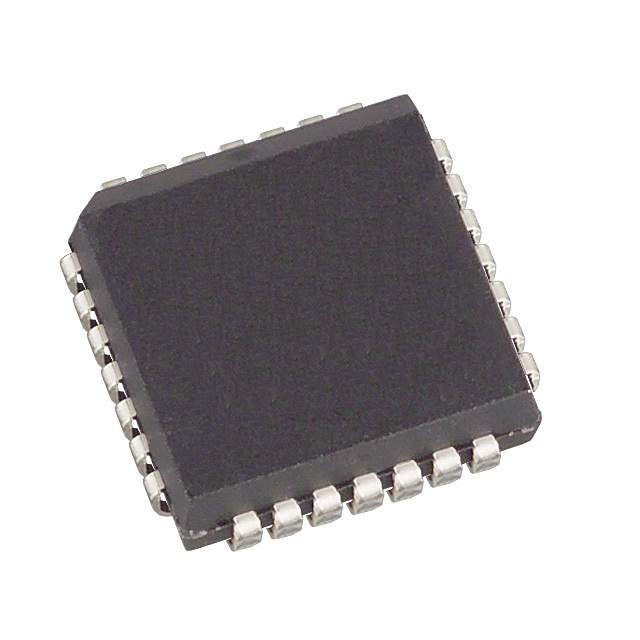

| Part Number | MX7537JP+ | MX7537JP+T | MX7537LP+ | MX7537KP+ | MX7533JP+ | MX7534JP+ | MX7536JP+ | MX7537JN+ |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Obsolete | Obsolete | Active | Obsolete | Obsolete |
| Number of Bits | 12 | 12 | 12 | - | 10 | 14 | - | 12 |
| Number of D/A Converters | 2 | 2 | 2 | - | 1 | 1 | - | 2 |
| Settling Time | 1.5µs | 1.5µs | 1.5µs | - | 800ns | 1.5µs | - | 1.5µs |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | - | Current - Unbuffered | Current - Unbuffered | - | Current - Unbuffered |
| Differential Output | No | No | No | - | Yes | No | - | No |
| Data Interface | Parallel | Parallel | Parallel | - | Parallel | Parallel | - | Parallel |
| Reference Type | External | External | External | - | External | External | - | External |
| Voltage - Supply, Analog | 10.8V ~ 16.5V | 10.8V ~ 16.5V | 10.8V ~ 16.5V | - | 5V ~ 16.5V | 11.4V ~ 15.75V | - | 10.8V ~ 16.5V |
| Voltage - Supply, Digital | 10.8V ~ 16.5V | 10.8V ~ 16.5V | 10.8V ~ 16.5V | - | 5V ~ 16.5V | 11.4V ~ 15.75V | - | 10.8V ~ 16.5V |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) | ±0.5 (Max), ±1 (Max) | - | - | ±2 (Max), ±1 (Max) | - | ±1 (Max), ±1 (Max) |
| Architecture | R-2R | R-2R | R-2R | - | R-2R | R-2R | - | R-2R |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | - | 0°C ~ 70°C | 0°C ~ 70°C | - | 0°C ~ 70°C |
| Package / Case | 28-LCC (J-Lead) | 28-LCC (J-Lead) | 28-LCC (J-Lead) | - | 20-LCC (J-Lead) | 20-LCC (J-Lead) | - | 24-DIP (0.300", 7.62mm) |
| Supplier Device Package | 28-PLCC (11.51x11.51) | 28-PLCC (11.51x11.51) | 28-PLCC (11.51x11.51) | - | 20-PLCC (9x9) | 20-PLCC (9x9) | - | 24-PDIP |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | - | Surface Mount | Surface Mount | - | Through Hole |
