Please send RFQ , we will respond immediately.

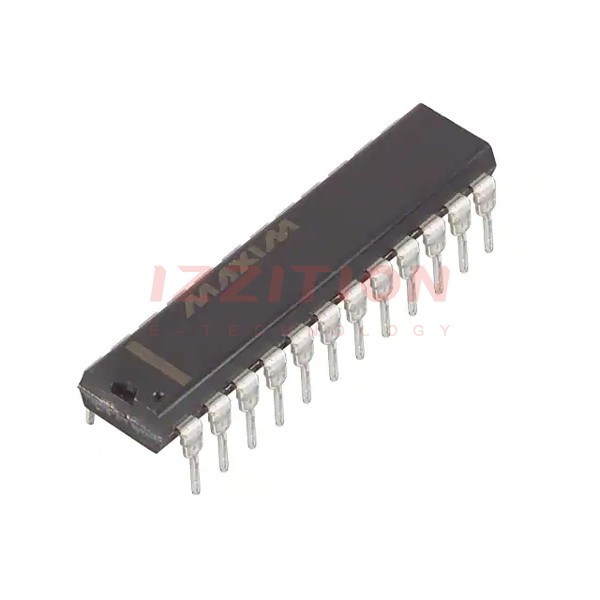

| Part Number | MX7537JN+ | MX7537JP+ | MX7538JN+ | MX7537KN+ | MX7537LN+ | MX7530JN+ | MX7533JN+ | MX7534JN+ | MX7535JN+ | MX7536JN+ | MX7537JN |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Active | Active | Obsolete | Obsolete | Active | Active | Active | Active | Obsolete | Active |
| Number of Bits | 12 | 12 | 14 | 12 | - | 10 | 10 | 14 | 14 | 14 | - |
| Number of D/A Converters | 2 | 2 | 1 | 2 | - | 1 | 1 | 1 | 1 | 1 | - |
| Settling Time | 1.5µs | 1.5µs | 1.5µs | 1.5µs | - | 500ns (Typ) | 800ns | 1.5µs | 1.5µs | 1.5µs | - |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | - | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | - |
| Differential Output | No | No | No | No | - | Yes | Yes | No | No | No | - |
| Data Interface | Parallel | Parallel | Parallel | Parallel | - | Parallel | Parallel | Parallel | Parallel | Parallel | - |
| Reference Type | External | External | External | External | - | External | External | External | External | External | - |
| Voltage - Supply, Analog | 10.8V ~ 16.5V | 10.8V ~ 16.5V | 11.4V ~ 15.75V | 10.8V ~ 16.5V | - | 5V ~ 15V | 5V ~ 16.5V | 11.4V ~ 15.75V | 11.4V ~ 15.75V | 11.4V ~ 15.75V | - |
| Voltage - Supply, Digital | 10.8V ~ 16.5V | 10.8V ~ 16.5V | 11.4V ~ 15.75V | 10.8V ~ 16.5V | - | 5V ~ 15V | 5V ~ 16.5V | 11.4V ~ 15.75V | 11.4V ~ 15.75V | 11.4V ~ 15.75V | - |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) | ±2 (Max), ±1 (Max) | ±0.5 (Max), ±1 (Max) | - | - | - | ±2 (Max), ±1 (Max) | ±2 (Max), ±1 (Max) | ±2 (Max), ±1 (Max) | - |
| Architecture | R-2R | R-2R | R-2R | R-2R | - | R-2R | R-2R | R-2R | R-2R | R-2R | - |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | - | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | - |
| Package / Case | 24-DIP (0.300", 7.62mm) | 28-LCC (J-Lead) | 24-DIP (0.300", 7.62mm) | 24-DIP (0.300", 7.62mm) | - | 16-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) | 28-DIP (0.600", 15.24mm) | 28-DIP (0.600", 15.24mm) | - |
| Supplier Device Package | 24-PDIP | 28-PLCC (11.51x11.51) | 24-PDIP | 24-PDIP | - | 16-PDIP | 16-PDIP | 20-PDIP | 28-PDIP | 28-PDIP | - |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Through Hole | - | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | - |
