| Part Number | MX7537JEWG+T | MX7538JEWG+T | MX7537JCWG+T | MX7537JEWG+ |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active |
| Number of Bits | 12 | 14 | 12 | 12 |
| Number of D/A Converters | 2 | 1 | 2 | 2 |
| Settling Time | 1.5µs | 1.5µs | 1.5µs | 1.5µs |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered |
| Differential Output | No | No | No | No |
| Data Interface | Parallel | Parallel | Parallel | Parallel |
| Reference Type | External | External | External | External |
| Voltage - Supply, Analog | 10.8V ~ 16.5V | 11.4V ~ 15.75V | 10.8V ~ 16.5V | 10.8V ~ 16.5V |
| Voltage - Supply, Digital | 10.8V ~ 16.5V | 11.4V ~ 15.75V | 10.8V ~ 16.5V | 10.8V ~ 16.5V |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) | ±2 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) |
| Architecture | R-2R | R-2R | R-2R | R-2R |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | 0°C ~ 70°C | -40°C ~ 85°C |

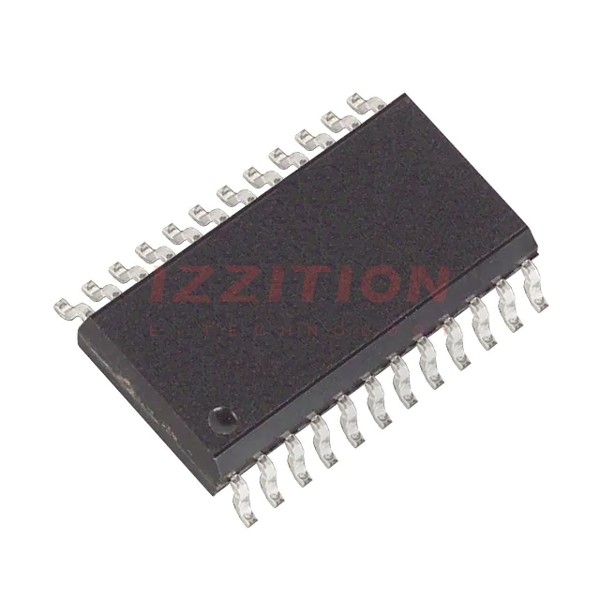

| Package / Case | 24-SOIC (0.295", 7.50mm Width) | 24-SOIC (0.295", 7.50mm Width) | 24-SOIC (0.295", 7.50mm Width) | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 24-SOIC | 24-SOIC | 24-SOIC | 24-SOIC |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
