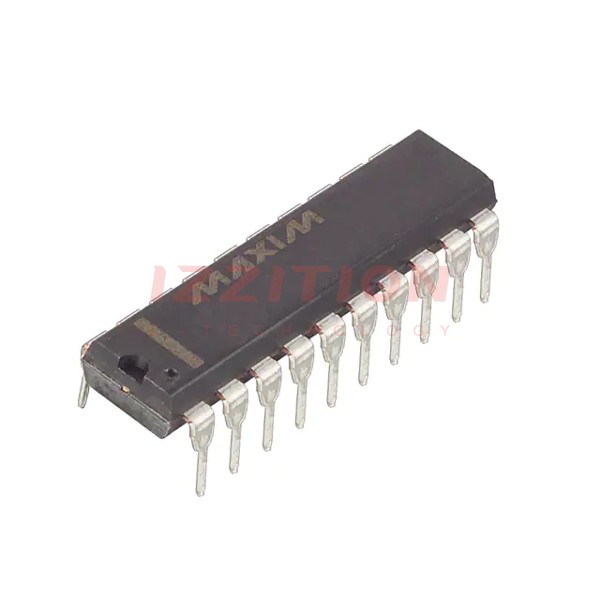

| Part Number | MX7528KN+ | MX7528KP+ | MX7528LN+ | MX7228KN+ | MX7520KN+ | MX7521KN+ | MX7523KN+ | MX7524KN+ | MX7528JN+ |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete | Active | Active | Obsolete |
| Number of Bits | 8 | 8 | - | 8 | 10 | 12 | 8 | 8 | 8 |
| Number of D/A Converters | 2 | 2 | - | 8 | 1 | 1 | 1 | 1 | 2 |
| Settling Time | 400ns | 400ns | - | 5µs | 500µs (Typ) | 500µs | 200ns | 500ns | 400ns |
| Output Type | Current - Unbuffered | Current - Unbuffered | - | Voltage - Buffered | Current - Unbuffered | Current - Unbuffered | Voltage - Unbuffered | Current - Unbuffered | Current - Unbuffered |
| Differential Output | No | No | - | No | Yes | Yes | Yes | Yes | No |
| Data Interface | Parallel | Parallel | - | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel |
| Reference Type | External | External | - | External | External | External | External | External | External |
| Voltage - Supply, Analog | 5V ~ 15V | 5V ~ 15V | - | 10.8V ~ 16.5V, ±5V | 5V ~ 15V | 5V ~ 15V | 5V ~ 16V | 5V ~ 15V | 5V ~ 15V |
| Voltage - Supply, Digital | 5V ~ 15V | 5V ~ 15V | - | 13.5V ~ 16.5V, 5V | 5V ~ 15V | 5V ~ 15V | 5V ~ 16V | 5V ~ 15V | 5V ~ 15V |
| INL/DNL (LSB) | ±0.5 (Max), ±1 (Max) | ±0.5 (Max), ±1 (Max) | - | ±1 (Max), ±1 (Max) | - | - | - | ±0.5 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) |
| Architecture | R-2R | R-2R | - | R-2R | R-2R | R-2R | R-2R | R-2R | R-2R |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | - | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Package / Case | 20-DIP (0.300", 7.62mm) | 20-LCC (J-Lead) | - | 24-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) | 18-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) |
| Supplier Device Package | 20-PDIP | 20-PLCC (9x9) | - | 24-PDIP | 16-PDIP | 18-PDIP | 16-PDIP | 16-PDIP | 20-PDIP |
| Mounting Type | Through Hole | Surface Mount | - | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
