Please send RFQ , we will respond immediately.
| Part Number | MX7524JP | MX7528JP | MX7524JP+ | MX7524JN |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Obsolete |
| Number of Bits | - | - | 8 | 8 |
| Number of D/A Converters | - | - | 1 | 1 |
| Settling Time | - | - | 500ns | 500ns |
| Output Type | - | - | Current - Unbuffered | Current - Unbuffered |
| Differential Output | - | - | Yes | Yes |
| Data Interface | - | - | Parallel | Parallel |
| Reference Type | - | - | External | External |
| Voltage - Supply, Analog | - | - | 5V ~ 15V | 5V ~ 15V |
| Voltage - Supply, Digital | - | - | 5V ~ 15V | 5V ~ 15V |
| INL/DNL (LSB) | - | - | ±0.5 (Max), ±1 (Max) | ±0.5 (Max), ±1 (Max) |
| Architecture | - | - | R-2R | R-2R |
| Operating Temperature | - | - | 0°C ~ 70°C | 0°C ~ 70°C |

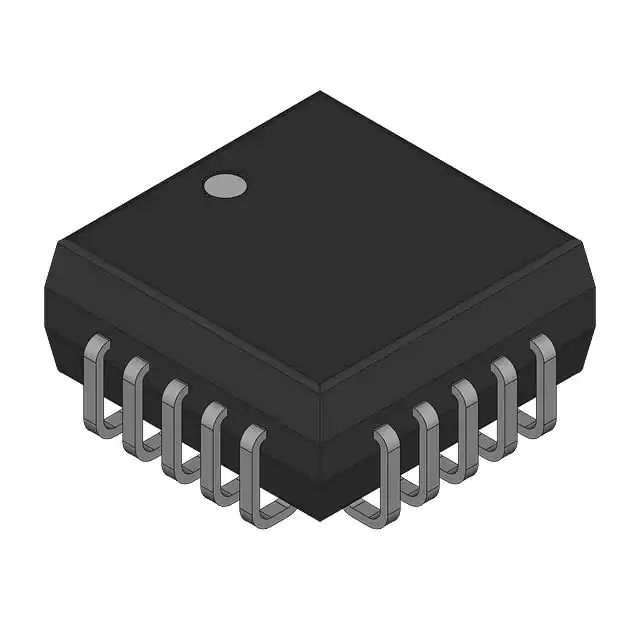

| Package / Case | - | - | 20-LCC (J-Lead) | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | - | - | 20-PLCC (9x9) | 16-PDIP |
| Mounting Type | - | - | Surface Mount | Through Hole |
