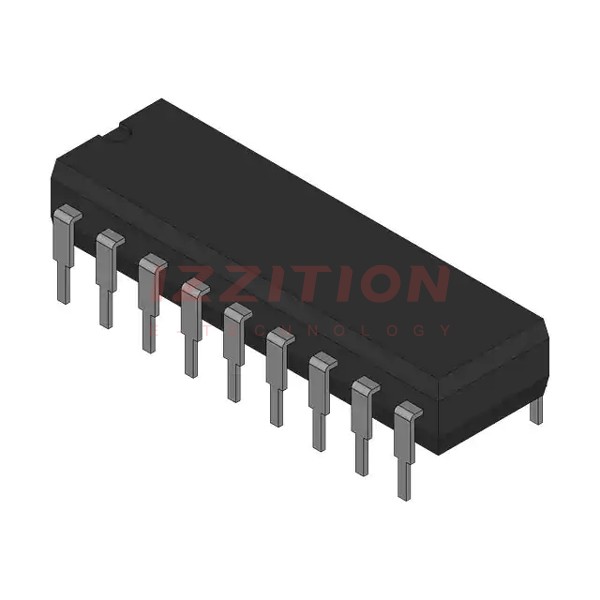

| Part Number | MX7521JN | MX7521KN | MX7528JN | MX7531JN | MX7524JN | MX7521JN+ | MX7520JN |
|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active | Obsolete | Active | Active |
| Number of Bits | - | - | - | - | 8 | 12 | - |
| Number of D/A Converters | - | - | - | - | 1 | 1 | - |
| Settling Time | - | - | - | - | 500ns | 500µs (Typ) | - |
| Output Type | - | - | - | - | Current - Unbuffered | Current - Unbuffered | - |
| Differential Output | - | - | - | - | Yes | Yes | - |
| Data Interface | - | - | - | - | Parallel | Parallel | - |
| Reference Type | - | - | - | - | External | External | - |
| Voltage - Supply, Analog | - | - | - | - | 5V ~ 15V | 5V ~ 15V | - |
| Voltage - Supply, Digital | - | - | - | - | 5V ~ 15V | 5V ~ 15V | - |
| INL/DNL (LSB) | - | - | - | - | ±0.5 (Max), ±1 (Max) | - | - |
| Architecture | - | - | - | - | R-2R | R-2R | - |
| Operating Temperature | - | - | - | - | 0°C ~ 70°C | 0°C ~ 70°C | - |
| Package / Case | - | - | - | - | 16-DIP (0.300", 7.62mm) | 18-DIP (0.300", 7.62mm) | - |
| Supplier Device Package | - | - | - | - | 16-PDIP | 18-PDIP | - |
| Mounting Type | - | - | - | - | Through Hole | Through Hole | - |
