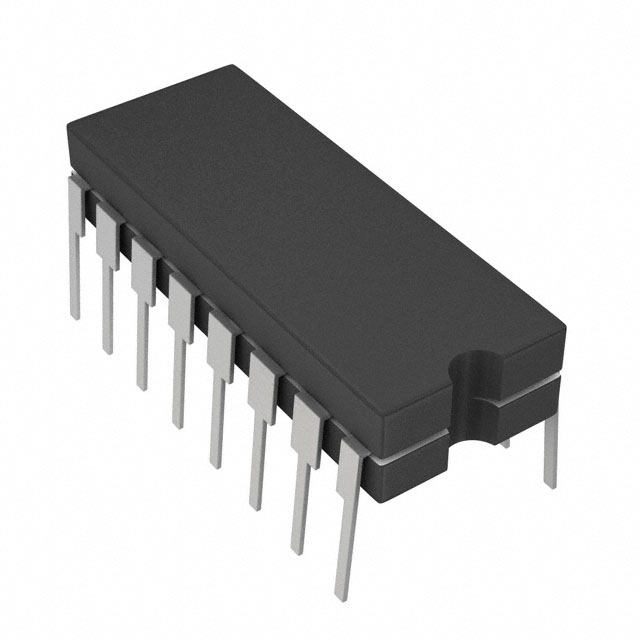

| Part Number | MX7520UQ/883B | MX7528UQ/883B | MX7520SQ/883B | MX7520TQ/883B |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Number of Bits | 10 | 8 | 10 | 10 |
| Number of D/A Converters | 1 | 2 | 1 | 1 |
| Settling Time | 500µs (Typ) | 400ns | 500µs (Typ) | 500µs (Typ) |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered |
| Differential Output | Yes | No | Yes | Yes |
| Data Interface | Parallel | Parallel | Parallel | Parallel |
| Reference Type | External | External | External | External |
| Voltage - Supply, Analog | 5V ~ 15V | 5V ~ 15V | 5V ~ 15V | 5V ~ 15V |
| Voltage - Supply, Digital | 5V ~ 15V | 5V ~ 15V | 5V ~ 15V | 5V ~ 15V |
| INL/DNL (LSB) | - | ±0.5 (Max), ±1 (Max) | - | - |
| Architecture | R-2R | R-2R | R-2R | R-2R |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Package / Case | 16-CDIP (0.300", 7.62mm) | 20-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CDIP | 20-CDIP | 16-CDIP | 16-CDIP |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
