Please send RFQ , we will respond immediately.
| Part Number | MX7226KP | MX7228KP | MX7226KP+ | MX7224KP | MX7225KP | MX7226KN |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active | Active | Obsolete |
| Number of Bits | - | - | 8 | - | - | 8 |
| Number of D/A Converters | - | - | 4 | - | - | 4 |
| Settling Time | - | - | 4µs | - | - | 4µs |
| Output Type | - | - | Voltage - Buffered | - | - | Voltage - Buffered |
| Differential Output | - | - | No | - | - | No |
| Data Interface | - | - | Parallel | - | - | Parallel |
| Reference Type | - | - | External | - | - | External |
| Voltage - Supply, Analog | - | - | 11.4V ~ 16.5V, -5V | - | - | 11.4V ~ 16.5V, -5V |
| Voltage - Supply, Digital | - | - | 14.25V ~ 15.75V | - | - | 14.25V ~ 15.75V |
| INL/DNL (LSB) | - | - | ±1 (Max), ±1 (Max) | - | - | ±1 (Max), ±1 (Max) |
| Architecture | - | - | R-2R | - | - | R-2R |
| Operating Temperature | - | - | 0°C ~ 70°C | - | - | 0°C ~ 70°C |

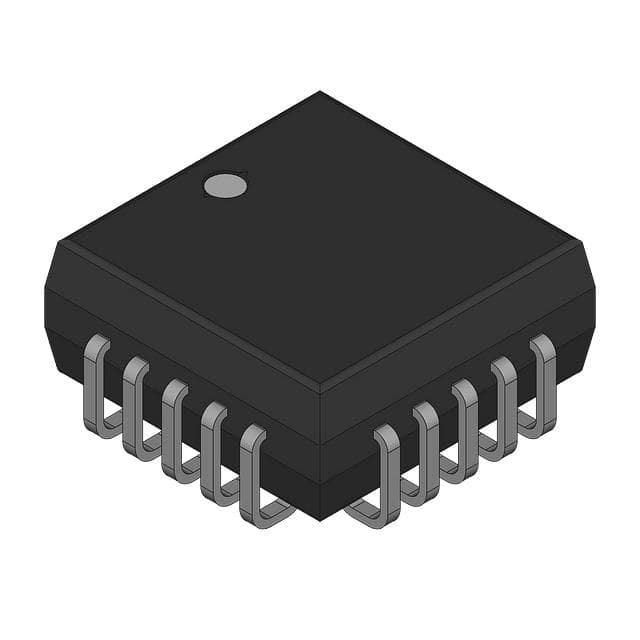

| Package / Case | - | - | 20-LCC (J-Lead) | - | - | 20-DIP (0.300", 7.62mm) |
| Supplier Device Package | - | - | 20-PLCC (9x9) | - | - | 20-PDIP |
| Mounting Type | - | - | Surface Mount | - | - | Through Hole |
