Please send RFQ , we will respond immediately.

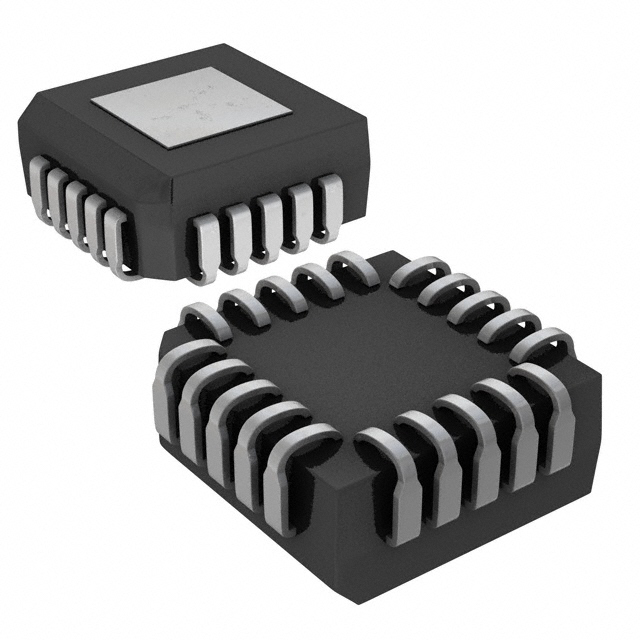

| Part Number | MX7224KP+T | MX7226KP+T | MX7228KP+T | MX7224KP+ |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| Number of Bits | - | 8 | 8 | 8 |
| Number of D/A Converters | - | 4 | 8 | 1 |
| Settling Time | - | 4µs | 5µs | 8µs |
| Output Type | - | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered |
| Differential Output | - | No | No | No |
| Data Interface | - | Parallel | Parallel | Parallel |
| Reference Type | - | External | External | External |
| Voltage - Supply, Analog | - | 11.4V ~ 16.5V, -5V | 10.8V ~ 16.5V, ±5V | 11.4V ~ 16.5V, -5V |
| Voltage - Supply, Digital | - | 14.25V ~ 15.75V | 13.5V ~ 16.5V, 5V | 14.25V ~ 15.75V |
| INL/DNL (LSB) | - | ±1 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) |
| Architecture | - | R-2R | R-2R | R-2R |
| Operating Temperature | - | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Package / Case | 20-LCC (J-Lead) | 20-LCC (J-Lead) | 28-LCC (J-Lead) | 20-LCC (J-Lead) |
| Supplier Device Package | 20-PLCC (9x9) | 20-PLCC (9x9) | 28-PLCC (11.51x11.51) | 20-PLCC (9x9) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
