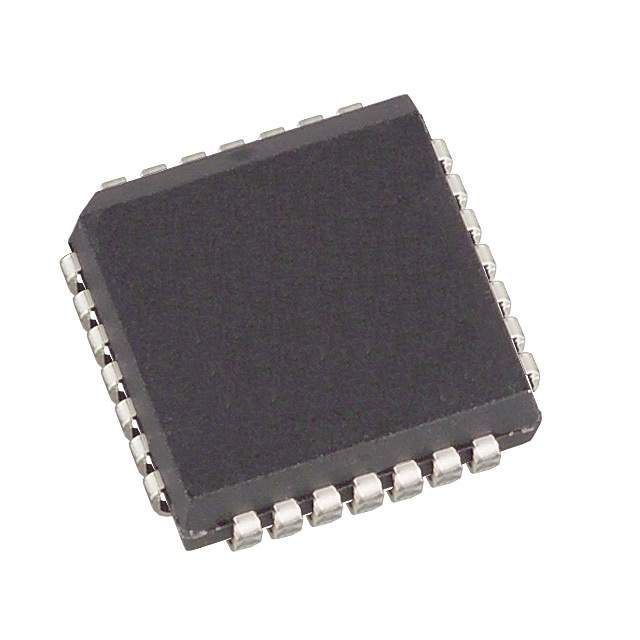

| Part Number | MX574AJP+ | MX574AJP+T | MX574ALP+ | MX574AKP+ | MX574AJN+ |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Obsolete | Active | Active |
| Number of Bits | 12 | 12 | 12 | 12 | 12 |
| Sampling Rate (Per Second) | 40k | 40k | 40k | 40k | 40k |
| Number of Inputs | 1 | 1 | 1 | 1 | 1 |
| Input Type | Single Ended | Single Ended | Single Ended | Single Ended | Single Ended |
| Data Interface | Parallel | Parallel | Parallel | Parallel | Parallel |
| Configuration | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC |
| Ratio - S/H:ADC | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 |
| Number of A/D Converters | 1 | 1 | 1 | 1 | 1 |
| Architecture | SAR | SAR | SAR | SAR | SAR |
| Reference Type | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal |
| Voltage - Supply, Analog | ±11.4V ~ 16.5V | ±11.4V ~ 16.5V | ±11.4V ~ 16.5V | ±11.4V ~ 16.5V | ±11.4V ~ 16.5V |
| Voltage - Supply, Digital | 5V | 5V | 5V | 5V | 5V |
| Features | - | - | - | - | - |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Package / Case | 28-LCC (J-Lead) | 28-LCC (J-Lead) | 28-LCC (J-Lead) | 28-LCC (J-Lead) | 28-DIP (0.600", 15.24mm) |
| Supplier Device Package | 28-PLCC (11.51x11.51) | 28-PLCC (11.51x11.51) | 28-PLCC (11.51x11.51) | 28-PLCC (11.51x11.51) | 28-PDIP |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Through Hole |
