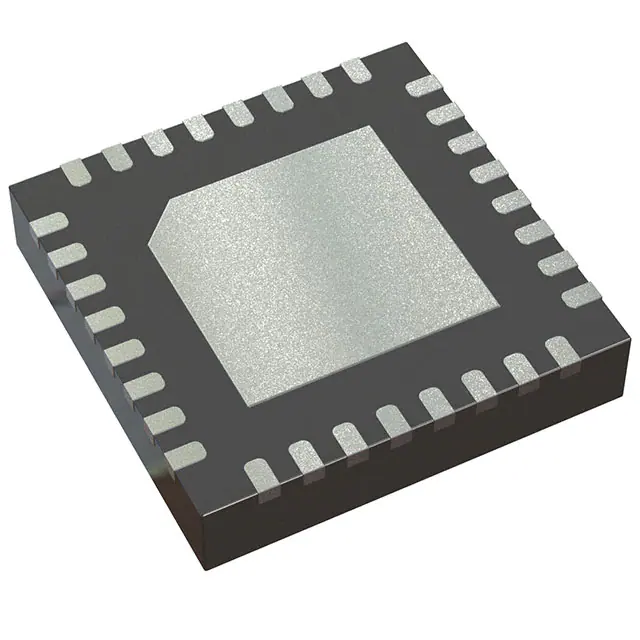

| Part Number | MAX9736BETJ+ | MAX9736BETJ+T | MAX9736DETJ+ | MAX9736AETJ+ |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active |
| Type | Class D | Class D | Class D | Class D |
| Output Type | 1-Channel (Mono) or 2-Channel (Stereo) | 1-Channel (Mono) or 2-Channel (Stereo) | 1-Channel (Mono) or 2-Channel (Stereo) | 1-Channel (Mono) or 2-Channel (Stereo) |
| Max Output Power x Channels @ Load | 15W x 1 @ 4Ohm; 7.5W x 2 @ 8Ohm | 15W x 1 @ 4Ohm; 7.5W x 2 @ 8Ohm | 17mW x 1 @ 4Ohm; 8.5mW x 2 @ 8Ohm | 35W x 1 @ 4Ohm; 17.5W x 2 @ 8Ohm |
| Voltage - Supply | 8V ~ 28V | 8V ~ 28V | 8V ~ 28V | 8V ~ 28V |
| Features | Depop, Mute, Short-Circuit and Thermal Protection, Shutdown | Depop, Mute, Short-Circuit and Thermal Protection, Shutdown | Depop, Mute, Short-Circuit and Thermal Protection, Shutdown | Depop, Mute, Short-Circuit and Thermal Protection, Shutdown |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Supplier Device Package | 32-TQFN (5x5) | 32-TQFN (5x5) | 32-TQFN (5x5) | 32-TQFN (7x7) |
| Package / Case | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad | 32-WQFN Exposed Pad |
