| Part Number | MAX9060EBS+TG45 | MAX9063EBS+TG45 | MAX9061EBS+TG45 | MAX9064EBS+TG45 | MAX9062EBS+TG45 | MAX9065EBS+TG45 |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active | Active | Obsolete |
| Type | General Purpose | with Voltage Reference | General Purpose | with Voltage Reference | with Voltage Reference | Window |
| Number of Elements | 1 | 1 | 1 | 1 | 1 | 1 |
| Output Type | Open Drain | Open Drain | Open Drain | Push-Pull | Open Drain | Push-Pull |
| Voltage - Supply, Single/Dual (±) | 1V ~ 5.5V | 1V ~ 5.5V | 1V ~ 5.5V | 1V ~ 5.5V | 1V ~ 5.5V | 1V ~ 5.5V |
| Voltage - Input Offset (Max) | 6mV @ 1.8V | - | 6mV @ 1.8V | - | - | - |
| Current - Input Bias (Max) | 0.01µA @ 1.8V | 60pA @ 3.3V | 0.01µA @ 1.8V | 60pA @ 3.3V | 60pA @ 3.3V | - |
| Current - Output (Typ) | - | - | - | - | - | - |
| Current - Quiescent (Max) | 1.1µA | 1.1µA | 1.1µA | 1.1µA | 1.1µA | 1.35µA |
| CMRR, PSRR (Typ) | - | 53dB PSRR | - | 53dB PSRR | 53dB PSRR | - |
| Propagation Delay (Max) | 25µs | 15µs | 25µs | 15µs | 15µs | - |
| Hysteresis | ±12mV | ±12mV | ±12mV | ±12mV | ±12mV | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | - |

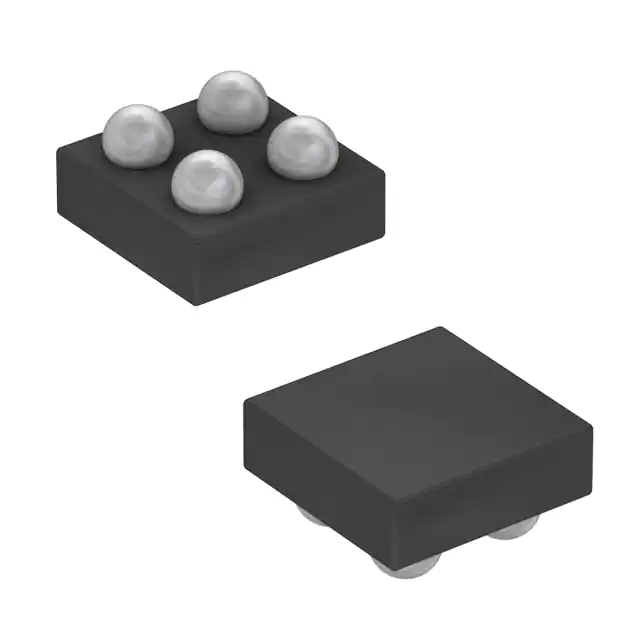

| Package / Case | 4-WFBGA, CSPBGA | 4-WFBGA, CSPBGA | 4-WFBGA, CSPBGA | 4-WFBGA, CSPBGA | 4-WFBGA, CSPBGA | 4-WFBGA, CSPBGA |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 4-UCSP (1.05x1.05) | 4-UCSP (1.05x1.05) | 4-UCSP (1.05x1.05) | 4-UCSP (1.05x1.05) | 4-UCSP (1.05x1.05) | 4-UCSP (1.05x1.05) |
