Please send RFQ , we will respond immediately.

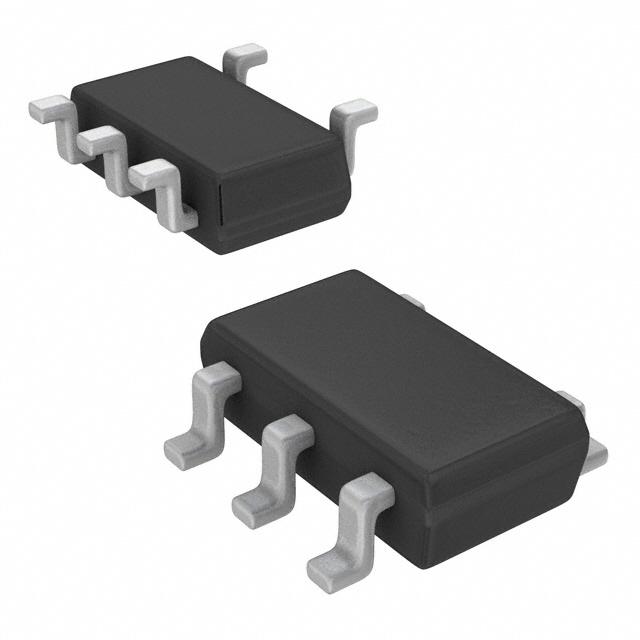

| Part Number | MAX8878EZK15+T | MAX8878EZK25+T | MAX8878EZK18+T | MAX8878EZK45+T | MAX8877EZK15+T | MAX8878EUK15+T |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Active | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 6.5V | 6.5V | 6.5V | 6.5V | 6.5V | 6.5V |
| Voltage - Output (Min/Fixed) | 1.5V | 2.5V | 1.8V | 4.5V | 1.5V | 1.5V |
| Voltage - Output (Max) | - | - | - | - | - | - |
| Voltage Dropout (Max) | 0.165V @ 150mA (Typ) | 0.165V @ 150mA (Typ) | 0.165V @ 150mA (Typ) | 0.165V @ 150mA (Typ) | 0.165V @ 150mA (Typ) | 0.165V @ 150mA (Typ) |
| Current - Output | 150mA | 150mA | 150mA | 150mA | 150mA | 150mA |
| Current - Quiescent (Iq) | 180 µA | 180 µA | 180 µA | 180 µA | 180 µA | 180 µA |
| Current - Supply (Max) | 100 µA | 100 µA | 100 µA | 100 µA | 100 µA | 100 µA |
| PSRR | - | - | - | - | - | - |
| Control Features | Enable | Enable | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Short Circuit | Over Current, Over Temperature, Reverse Polarity, Short Circuit | Over Current, Over Temperature, Reverse Polarity, Short Circuit | Over Current, Over Temperature, Reverse Polarity, Short Circuit | Over Current, Over Temperature, Reverse Polarity, Short Circuit | Over Current, Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 | SOT-23-5 Thin, TSOT-23-5 | SOT-23-5 Thin, TSOT-23-5 | SOT-23-5 Thin, TSOT-23-5 | SOT-23-5 Thin, TSOT-23-5 | SC-74A, SOT-753 |
| Supplier Device Package | TSOT-23-5 | TSOT-23-5 | TSOT-23-5 | TSOT-23-5 | TSOT-23-5 | SOT-23-5 |
