| Part Number | MAX8869EUE10+T | MAX8869EUE18+T | MAX8869EUE50+T | MAX8869EUE10+ |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive | Positive |
| Output Type | Adjustable (Fixed) | Adjustable (Fixed) | Adjustable (Fixed) | Adjustable (Fixed) |
| Number of Regulators | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 0.8V (1V) | 0.8V (1.8V) | 0.8V (5V) | 0.8V (1V) |
| Voltage - Output (Max) | 5V | 5V | 5V | 5V |
| Voltage Dropout (Max) | - | - | 0.35V @ 1A | - |
| Current - Output | 1A | 1A | 1A | 1A |
| Current - Quiescent (Iq) | 2 mA | 2 mA | 2 mA | 2 mA |
| Current - Supply (Max) | 2.5 mA | 2.5 mA | 2.5 mA | 2.5 mA |
| PSRR | 54dB (100kHz) | 54dB (100kHz) | 54dB (100kHz) | 54dB (100kHz) |
| Control Features | Enable, Reset, Soft Start | Enable, Reset, Soft Start | Enable, Reset, Soft Start | Enable, Reset, Soft Start |
| Protection Features | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

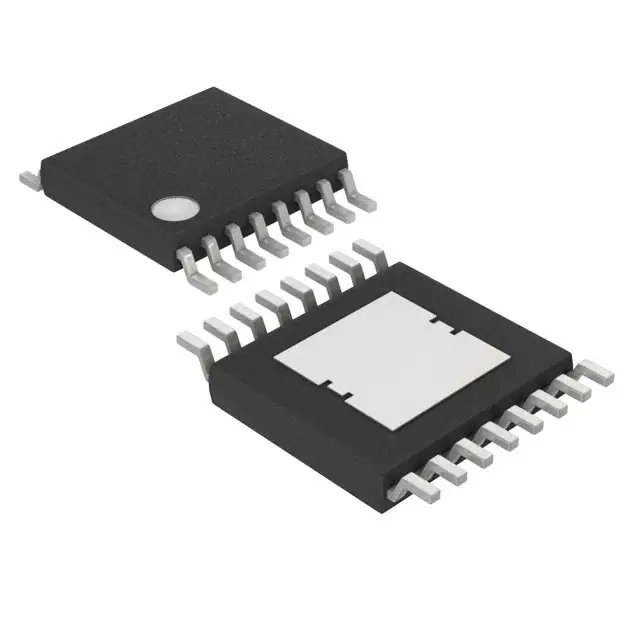

| Package / Case | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 16-TSSOP-EP | 16-TSSOP-EP | 16-TSSOP-EP | 16-TSSOP-EP |
