| Part Number | MAX8633ELA+ | MAX8634ELA+ | MAX8633ELA+T | MAX8636ELA+ |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Active | Obsolete | Active |
| Output Configuration | Positive | - | Positive | Positive |
| Output Type | Programmable | - | Programmable | Programmable |
| Number of Regulators | 2 | - | 2 | 2 |
| Voltage - Input (Max) | 5.5V | - | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 1.5V, 2.8V | - | 1.5V, 2.8V | 1.5V, 2.8V |
| Voltage - Output (Max) | 2.8V, 3V | - | 2.8V, 3V | 3V, 3V |
| Voltage Dropout (Max) | 0.2V @ 100mA, 0.2V @ 100mA | - | 0.2V @ 100mA, 0.2V @ 100mA | 0.2V @ 100mA, 0.2V @ 100mA |
| Current - Output | 300mA, 300mA | - | 300mA, 300mA | 300mA, 300mA |
| Current - Quiescent (Iq) | 75 µA | - | 75 µA | 75 µA |
| Current - Supply (Max) | 60 µA | - | - | - |
| PSRR | 60dB ~ 50dB (1kHz ~ 10kHz) | - | 60dB ~ 55dB (1kHz ~ 10kHz) | 60dB ~ 55dB (1kHz ~ 10kHz) |
| Control Features | Enable, Reset | - | Enable, Reset | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | - | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 85°C | - | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | - | Surface Mount | Surface Mount |

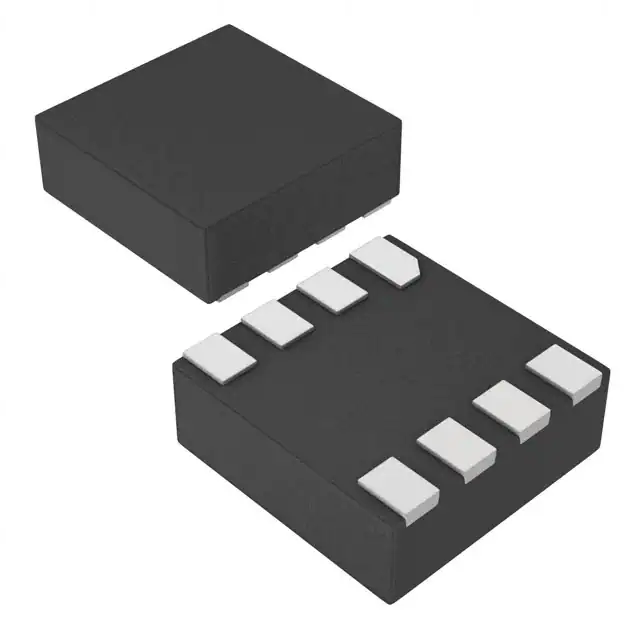

| Package / Case | 8-WFDFN | - | 8-WFDFN | 8-WFDFN |
| Supplier Device Package | 8-uDFN (2x2) | - | 8-uDFN (2x2) | 8-uDFN (2x2) |
