Please send RFQ , we will respond immediately.
| Part Number | MAX8630YETD15+T | MAX8630YETD18+T | MAX8630YETD25+T | MAX8630ZETD15+T | MAX8630XETD15+T | MAX8630YETD15+ |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | DC DC Regulator | DC DC Regulator | DC DC Regulator | DC DC Regulator | DC DC Regulator | DC DC Regulator |
| Topology | Switched Capacitor (Charge Pump) | Switched Capacitor (Charge Pump) | Switched Capacitor (Charge Pump) | Switched Capacitor (Charge Pump) | Switched Capacitor (Charge Pump) | Switched Capacitor (Charge Pump) |
| Internal Switch(s) | Yes | Yes | Yes | Yes | Yes | Yes |
| Number of Outputs | 5 | 5 | 5 | 5 | 5 | 5 |
| Voltage - Supply (Min) | 2.7V | 2.7V | 2.7V | 2.7V | 2.7V | 2.7V |
| Voltage - Supply (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output | - | - | - | - | - | - |
| Current - Output / Channel | 25mA | 25mA | 25mA | 25mA | 25mA | 25mA |
| Frequency | 1MHz | 1MHz | 1MHz | 1MHz | 1MHz | 1MHz |
| Dimming | Multi-Step | Multi-Step | Multi-Step | Multi-Step | Multi-Step | Multi-Step |
| Applications | Backlight | Backlight | Backlight | Backlight | Backlight | Backlight |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

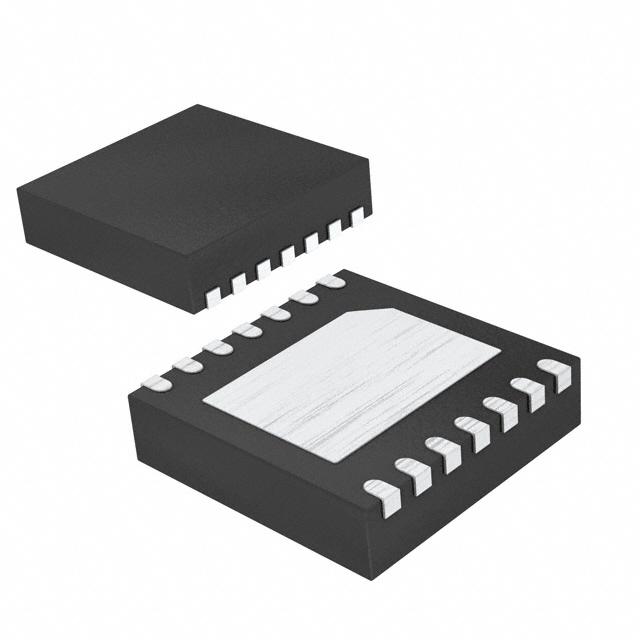

| Package / Case | 14-WFDFN Exposed Pad | 14-WFDFN Exposed Pad | 14-WFDFN Exposed Pad | 14-WFDFN Exposed Pad | 14-WFDFN Exposed Pad | 14-WFDFN Exposed Pad |
| Supplier Device Package | 14-TDFN (3x3) | 14-TDFN (3x3) | 14-TDFN (3x3) | 14-TDFN (3x3) | 14-TDFN (3x3) | 14-TDFN (3x3) |
