Please send RFQ , we will respond immediately.

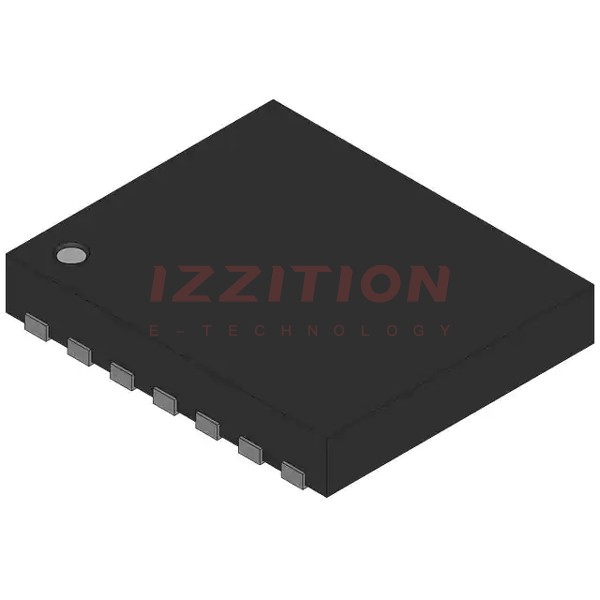

| Part Number | MAX8630XETD25+T | MAX8630ZETD25+T | MAX8630YETD25+T | MAX8630WETD25+T | MAX8630XETD15+T | MAX8630XETD20+T | MAX8630XETD25+ |
|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Obsolete | Obsolete | Active | Obsolete | Active | Active |
| Type | - | DC DC Regulator | DC DC Regulator | DC DC Regulator | DC DC Regulator | DC DC Regulator | - |
| Topology | - | Switched Capacitor (Charge Pump) | Switched Capacitor (Charge Pump) | Switched Capacitor (Charge Pump) | Switched Capacitor (Charge Pump) | Switched Capacitor (Charge Pump) | - |
| Internal Switch(s) | - | Yes | Yes | Yes | Yes | Yes | - |
| Number of Outputs | - | 5 | 5 | 5 | 5 | 5 | - |
| Voltage - Supply (Min) | - | 2.7V | 2.7V | 2.7V | 2.7V | 2.7V | - |
| Voltage - Supply (Max) | - | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | - |
| Voltage - Output | - | - | - | - | - | - | - |
| Current - Output / Channel | - | 25mA | 25mA | 25mA | 25mA | 25mA | - |
| Frequency | - | 1MHz | 1MHz | 1MHz | 1MHz | 1MHz | - |
| Dimming | - | Multi-Step | Multi-Step | PWM | Multi-Step | Multi-Step | - |
| Applications | - | Backlight | Backlight | Backlight | Backlight | Backlight | - |
| Operating Temperature | - | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | - |
| Mounting Type | - | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | - |
| Package / Case | - | 14-WFDFN Exposed Pad | 14-WFDFN Exposed Pad | 14-WFDFN Exposed Pad | 14-WFDFN Exposed Pad | 14-WFDFN Exposed Pad | - |
| Supplier Device Package | - | 14-TDFN (3x3) | 14-TDFN (3x3) | 14-TDFN (3x3) | 14-TDFN (3x3) | 14-TDFN (3x3) | - |
