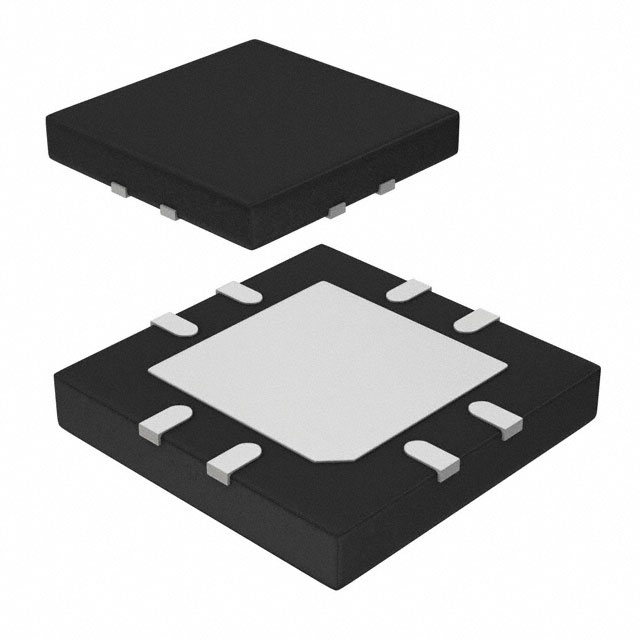

| Part Number | MAX8559ETAAG+TG50 | MAX8559ETAAJ+TG50 |
|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Obsolete |
| Output Configuration | Positive | Positive |
| Output Type | Fixed | Fixed |
| Number of Regulators | 2 | 2 |
| Voltage - Input (Max) | 6.5V | 6.5V |
| Voltage - Output (Min/Fixed) | 3.3V, 3V | 3.3V, 2.85V |
| Voltage - Output (Max) | - | - |
| Voltage Dropout (Max) | 0.12V @ 100mA, 0.12V @ 100mA | 0.12V @ 100mA, 0.12V @ 100mA |
| Current - Output | 300mA, 300mA | 300mA, 300mA |
| Current - Quiescent (Iq) | 290 µA | 290 µA |
| Current - Supply (Max) | 220 µA | - |
| PSRR | 70dB ~ 54dB (10kHz ~ 100kHz) | 70dB ~ 54dB (10kHz ~ 100kHz) |
| Control Features | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 8-WQFN Exposed Pad | 8-WDFN Exposed Pad |
| Supplier Device Package | 8-TQFN (3x3) | 8-TDFN (3x3) |
