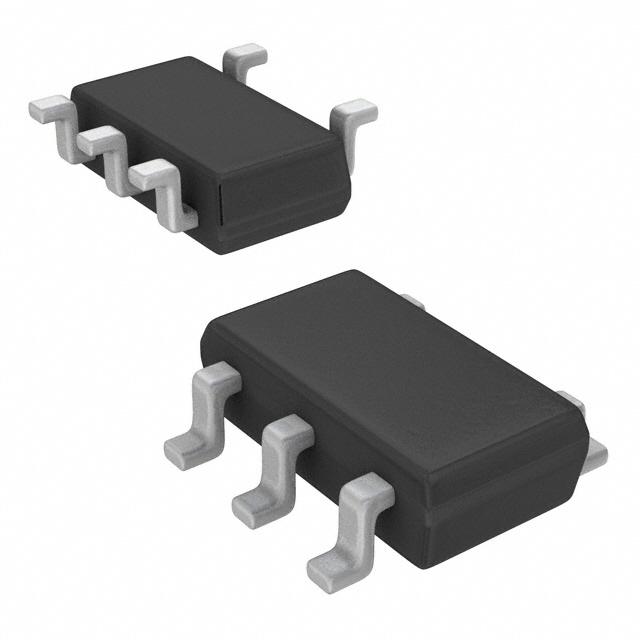

| Part Number | MAX8515AEZK+T | MAX8515AEZK-T | MAX8515EZK+T | MAX8515AEXK+T |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Obsolete | Active |
| Reference Type | Shunt | Shunt | Shunt | Shunt |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable |
| Voltage - Output (Min/Fixed) | 0.6V | 0.6V | 0.6V | 0.6V |
| Voltage - Output (Max) | 18 V | 18 V | 18 V | 18 V |
| Current - Output | 20 mA | 20 mA | 20 mA | 20 mA |
| Tolerance | ±0.5% | ±0.5% | ±1% | ±0.5% |
| Temperature Coefficient | - | - | - | - |
| Noise - 0.1Hz to 10Hz | - | - | - | - |
| Noise - 10Hz to 10kHz | - | - | - | - |
| Voltage - Input | - | - | - | - |
| Current - Supply | - | - | - | - |
| Current - Cathode | 4 mA | 4 mA | 4 mA | 4 mA |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 | SOT-23-5 Thin, TSOT-23-5 | SOT-23-5 Thin, TSOT-23-5 | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | TSOT-23-5 | TSOT-23-5 | TSOT-23-5 | SC-70-5 |
