| Part Number | MAX77812FEWB+T | MAX77812AEWB+T | MAX77812BEWB+T | MAX77812CEWB+T | MAX77812DEWB+T | MAX77812EWB+T |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active | Active | Active |
| Function | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 4 | 4 | 4 | 4 | 4 | 4 |
| Voltage - Input (Min) | 2.5V | 2.5V | 2.5V | 2.5V | 2.5V | 2.5V |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 0.25V | 0.25V | 0.25V | 0.25V | 0.25V | 0.25V |
| Voltage - Output (Max) | 1.525V | 1.525V | 1.525V | 1.525V | 1.525V | 1.525V |
| Current - Output | 20A | 20A | 20A | 20A | 20A | 20A |
| Frequency - Switching | 2MHz | 2MHz | 2MHz | 2MHz | 2MHz | 2MHz |
| Synchronous Rectifier | No | No | No | No | No | No |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

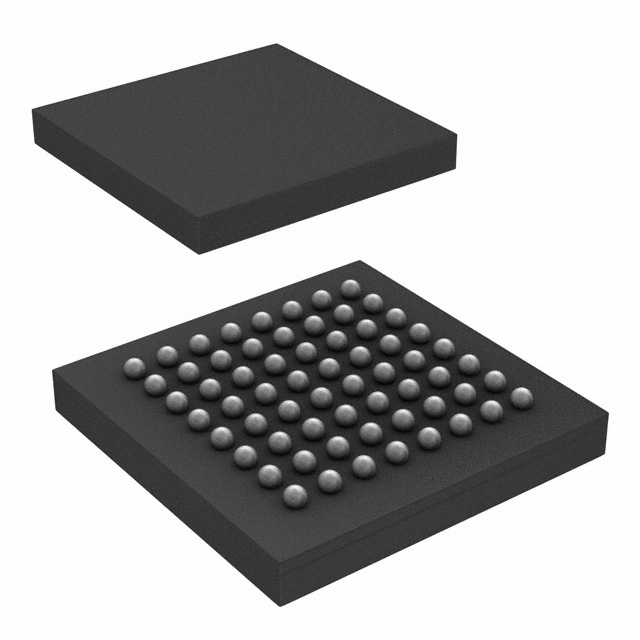

| Package / Case | 64-WFBGA, WLBGA | 64-WFBGA, WLBGA | 64-WFBGA, WLBGA | 64-WFBGA, WLBGA | 64-WFBGA, WLBGA | 64-WFBGA, WLBGA |
| Supplier Device Package | 64-WLP (3.41x3.37) | 64-WLP (3.41x3.37) | 64-WLP (3.41x3.37) | 64-WLP (3.41x3.37) | 64-WLP (3.41x3.37) | 64-WLP (3.41x3.37) |
