| Part Number | MAX77596ETBC+T | MAX77596ETBA+T | MAX77596ETBB+T | MAX77596ETBC+ |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active |
| Function | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck |
| Output Type | Adjustable | Fixed | Fixed | Adjustable |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 3.5V | 3.5V | 3.5V | 3.5V |
| Voltage - Input (Max) | 24V | 24V | 24V | 24V |
| Voltage - Output (Min/Fixed) | 1V | 5V | 3.3V | 1V |
| Voltage - Output (Max) | 10V | - | - | 10V |
| Current - Output | 300mA | 300mA | 300mA | 300mA |
| Frequency - Switching | 1.7MHz | 1.7MHz | 1.75MHz | 1.7MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

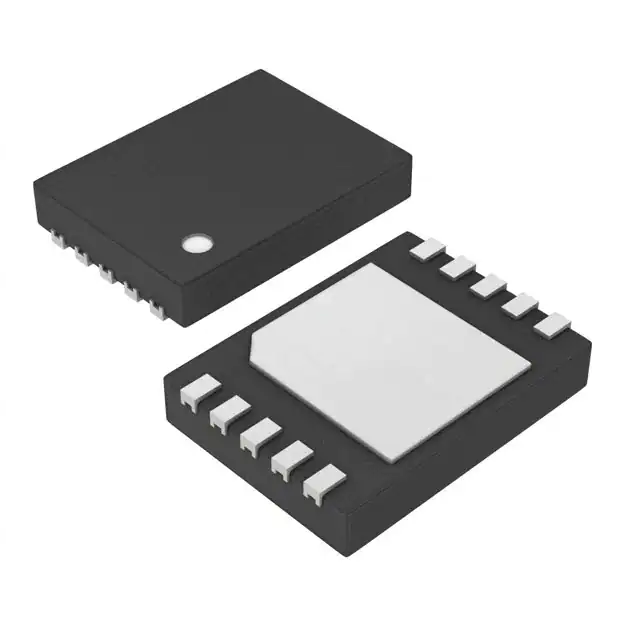

| Package / Case | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad |
| Supplier Device Package | 10-TDFN (2.5x2) | 10-TDFN (2.5x2) | 10-TDFN (2.5x2) | 10-TDFN (2.5x2) |
