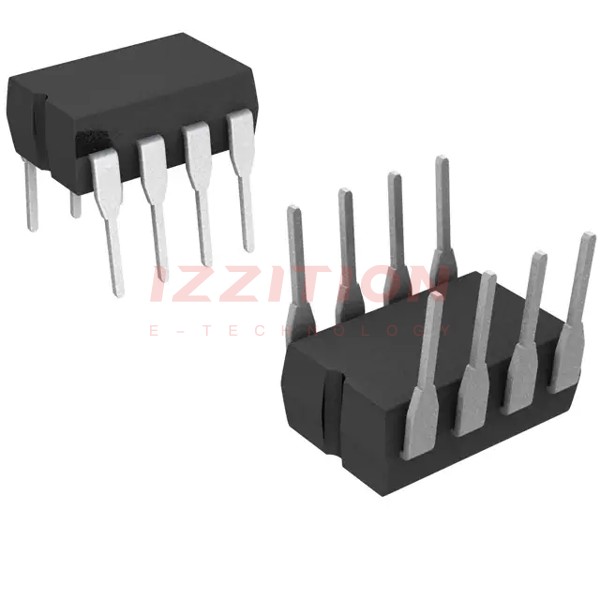

| Part Number | MAX765MJA | MAX766MJA |
|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Obsolete |
| Function | Step-Up/Step-Down | Step-Up/Step-Down |
| Output Configuration | Negative | Negative |
| Topology | Buck-Boost | Buck-Boost |
| Output Type | Adjustable (Fixed) | Adjustable (Fixed) |
| Number of Outputs | 1 | 1 |
| Voltage - Input (Min) | 3.5V | 3V |
| Voltage - Input (Max) | 16V | 16V |
| Voltage - Output (Min/Fixed) | -1V (-12V) | -1V (-15V) |
| Voltage - Output (Max) | -16V | -16V |
| Current - Output | 250mA | 105mA |
| Frequency - Switching | 300kHz | 300kHz |
| Synchronous Rectifier | No | No |
| Operating Temperature | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | 8-CDIP (0.300", 7.62mm) | 8-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 8-CERDIP | 8-CERDIP |
