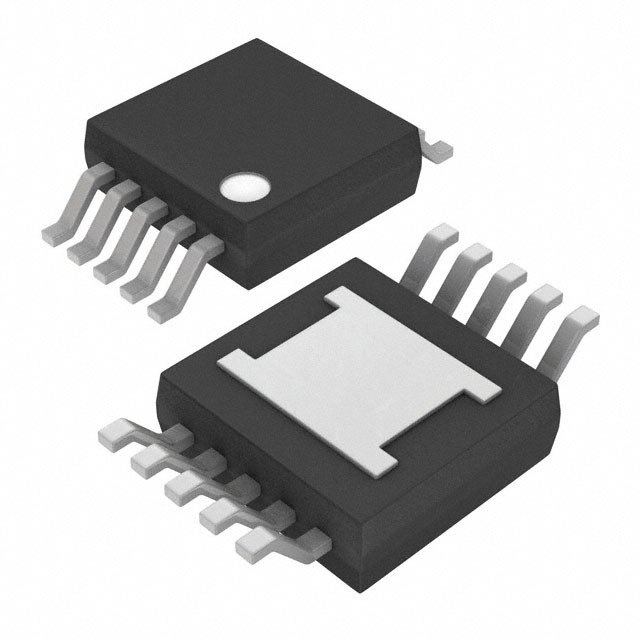

| Part Number | MAX7306AUB+T | MAX7307AUB+T | MAX7306ALB+T | MAX7306AUB+ |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active |
| Type | Linear | Linear | Linear | Linear |
| Topology | - | - | - | - |
| Internal Switch(s) | - | - | No | - |
| Number of Outputs | 4 | 4 | 4 | 4 |
| Voltage - Supply (Min) | 1.62V | 1.62V | 1.62V | 1.62V |
| Voltage - Supply (Max) | 3.6V | 3.6V | 3.6V | 3.6V |
| Voltage - Output | - | - | - | - |
| Current - Output / Channel | 25mA | 25mA | 25mA | 25mA |
| Frequency | 1MHz | 1MHz | 1MHz | 1MHz |
| Dimming | I²C | I²C | - | I²C |
| Applications | Backlight | Backlight | Backlight | Backlight |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad | 10-WFDFN | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 10-uMAX-EP | 10-uMAX-EP | 10-uDFN (2x2) | 10-uMAX-EP |
