| Part Number | MAX6423XS25+T | MAX6423XS29+T | MAX6423XS26+T | MAX6423XS28+T | MAX6423XS27+T | MAX6421XS25+T | MAX6423XS20+T | MAX6423XS22+T | MAX6423XS23+T |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Active | Active | Active | Active | Active | Active | Active | Obsolete |
| Type | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset |
| Number of Voltages Monitored | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Threshold | 2.5V | 2.925V | 2.625V | 2.8V | 2.7V | 2.5V | 2V | 2.188V | 2.313V |
| Output | Open Drain or Open Collector | Open Drain or Open Collector | Open Drain or Open Collector | Open Drain or Open Collector | Open Drain or Open Collector | Push-Pull, Totem Pole | Open Drain or Open Collector | Open Drain or Open Collector | Open Drain or Open Collector |
| Reset | Active Low | Active Low | Active Low | Active Low | Active Low | Active Low | Active Low | Active Low | Active Low |
| Reset Timeout | Adjustable/Selectable | Adjustable/Selectable | Adjustable/Selectable | Adjustable/Selectable | Adjustable/Selectable | Adjustable/Selectable | Adjustable/Selectable | Adjustable/Selectable | Adjustable/Selectable |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

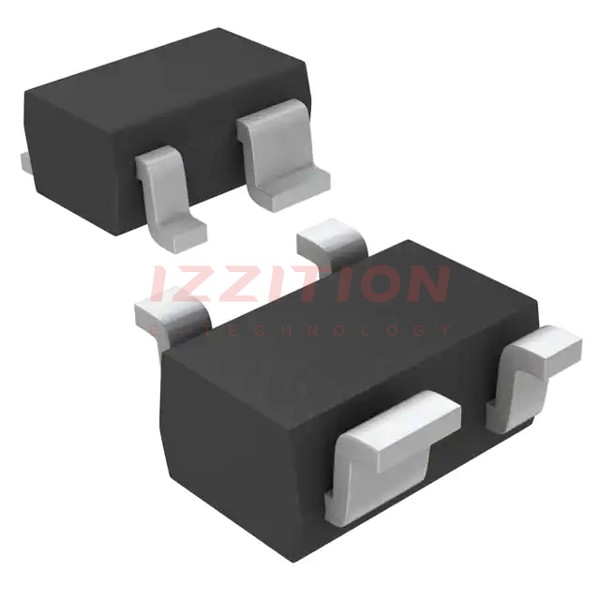

| Package / Case | SC-82A, SOT-343 | SC-82A, SOT-343 | SC-82A, SOT-343 | SC-82A, SOT-343 | SC-82A, SOT-343 | SC-82A, SOT-343 | SC-82A, SOT-343 | SC-82A, SOT-343 | SC-82A, SOT-343 |
| Supplier Device Package | SC-70-4 | SC-70-4 | SC-70-4 | SC-70-4 | SC-70-4 | SC-70-4 | SC-70-4 | SC-70-4 | SC-70-4 |
