| Part Number | MAX6401BS27+T | MAX6402BS27+T | MAX6401BS29+T | MAX6406BS27+T | MAX6401BS28+T | MAX6401BS22+T | MAX6401BS23+T | MAX6401BS24+T | MAX6401BS25+T | MAX6401BS26+T |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Obsolete | Active | Obsolete | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset |
| Number of Voltages Monitored | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Threshold | 2.7V | 2.7V | 2.93V | 2.7V | 2.8V | 2.2V | 2.32V | 2.4V | 2.5V | 2.63V |
| Output | Push-Pull, Totem Pole | Open Drain or Open Collector | Push-Pull, Totem Pole | Push-Pull, Totem Pole | Push-Pull, Totem Pole | Push-Pull, Totem Pole | Push-Pull, Totem Pole | Push-Pull, Totem Pole | Push-Pull, Totem Pole | Push-Pull, Totem Pole |
| Reset | Active High | Active Low | Active High | Active Low | Active High | Active High | Active High | Active High | Active High | Active High |
| Reset Timeout | 100ms Minimum | 100ms Minimum | 100ms Minimum | 20µs Typical Propagation Delay | 100ms Minimum | 100ms Minimum | 100ms Minimum | 100ms Minimum | 100ms Minimum | 100ms Minimum |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

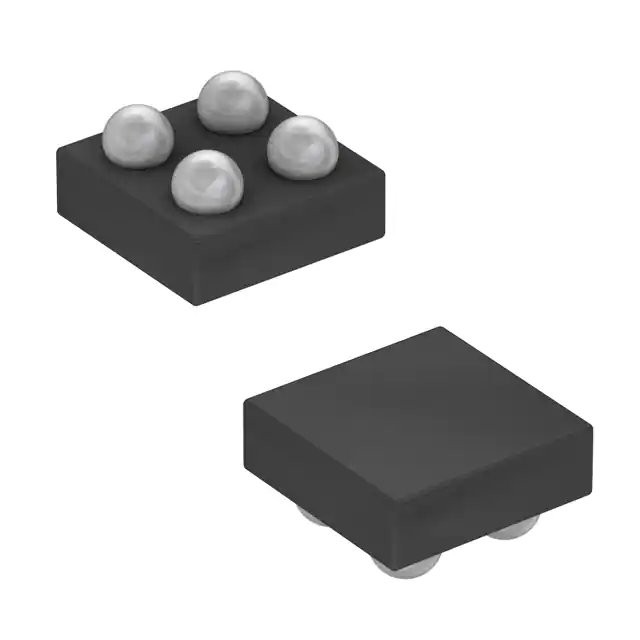

| Package / Case | 4-WFBGA, CSPBGA | 4-WFBGA, CSPBGA | 4-WFBGA, CSPBGA | 4-WFBGA, CSPBGA | 4-WFBGA, CSPBGA | 4-WFBGA, CSPBGA | 4-WFBGA, CSPBGA | 4-WFBGA, CSPBGA | 4-WFBGA, CSPBGA | 4-WFBGA, CSPBGA |
| Supplier Device Package | 4-UCSP (1.05x1.05) | 4-UCSP (1.05x1.05) | 4-UCSP (1.05x1.05) | 4-UCSP (1.05x1.05) | 4-UCSP (1.05x1.05) | 4-UCSP (1.05x1.05) | 4-UCSP (1.05x1.05) | 4-UCSP (1.05x1.05) | 4-UCSP (1.05x1.05) | 4-UCSP (1.05x1.05) |
